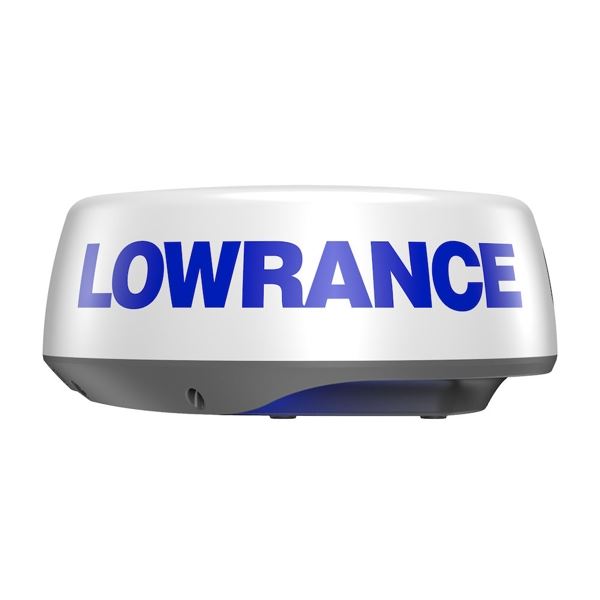

Lowrance Halo20+ Pulse Compression Radar
36 nm range from a compact 20-inch dome. Advanced pulse compression technology with beam sharpening. Simultaneous Dual Range operation sees both near and far. Ultra-fast 60 RPM operation at ranges up to 1.5 nm. VelocityTrack™ Doppler technology for collision avoidance. Easy operation with harbour, offshore, weather, and bird modes. MARPA target tracking (up to 10 targets, 20 in dual range). Ready instantly from standby. Comes with 5 meter radar cable.
In the Box
A Halo Radar
B Mounting bolts and washers
Hex bolt (M8x30), 4x
Flat washer, 4x
Spring washer, 4x
C Documentation pack
D Interconnection cable
E Ethernet adapter RJ45 to 5-pin, 1.5m (4.9 ft)
F Waterproof cable boot for interconnection cable RJ45 plug
G Cable retainer kit
Cable retainer clip, 2x
Screw (Phillips drive), 4x
Approvals
| Compliance | FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety |
|---|
Electrical
| Power Consumption, max. | 29W |
|---|---|
| Power Consumption, typical | 20W |
| Recommended Fuse Rating | 5A |
| Supply Voltage | 10.5 - 31.2 VDC (12/24V systems) |
| Humidity | 95% RH at 35°C (95°F) |
Environment
| Operating Temperature Range | -25° to + 55°C (-13° to +130°F) |
|---|---|
| Waterproof rating | IPX6 |
Physical
| Dimensions (W x H x D) | 510mm dia x 223 mm H. (20" dia x 8.8" H) |
|---|---|
| Weight | 5.9 kg (13 lbs) without cable |
Radar
| Beam width | 4.9° H nominal (-3dB) 2.5° with target separation on high x 25° V |
|---|---|
| Max Range, scale | 36 NM |
| Max Operating Wind Speed | 100 knots (51 m/s) |
| Min Range, scale | 50 m / 200 ft / 50 yd |
| Radar Modes | Harbour, Offshore, Weather, Bird, Dual Range, North Up, Course Up, Relative motion, True Motion |
| Radar Technology | Pulse Compression |
| Rotation speed | Up to 60 RPM (Range Dependent) |
