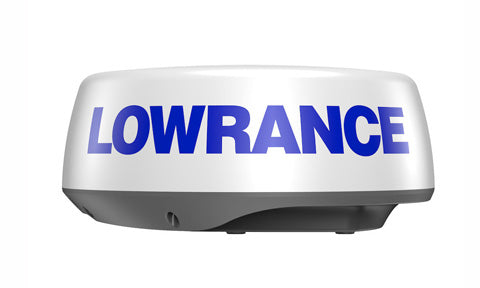

Lowrance Halo20 Pulse Compression Radar
Manufacturer Part No:
000-14543-001 |
£1,738.79 ex-VAT
New Product - Pre-order - December 2019 Delivery
10W Pulse Compression Radar. 24 nm range from a compact 20-inch dome. Unrivalled short range. Radiation safe. Easy operation with harbour, offshore and weather mode. MARPA target tracking 10. InstantOn™. Low Power Consumption. Guard Zones. Comes withe 5 meter radar cable.
In the Box
A Halo Radar
B Mounting bolts and washers
Hex bolt (M8x30), 4x
Flat washer, 4x
Spring washer, 4x
C Documentation pack
D Interconnection cable
E Ethernet adapter RJ45 to 5-pin, 1.5m (4.9 ft)
F Waterproof cable boot for interconnection cable RJ45 plug
G Cable retainer kit
Cable retainer clip, 2x
Screw (Phillips drive), 4x
Approvals
| Compliance | FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety |
|---|
Electrical
| Power Consumption, max. | 20W |
|---|---|
| Power Consumption, typical | 18W |
| Recommended Fuse Rating | 5A |
| Supply Voltage | 10.5 - 31.2 VDC (12/24V systems) |
| Humidity | 95% RH at 35°C (95°F) |
Environment
| Operating Temperature Range | -25° to + 55°C (-13° to +130°F) |
|---|---|
| Waterproof rating | IPX6 |
Physical
| Dimensions (W x H x D) | 510mm dia x 223 mm H. (20" dia x 8.8" H) |
|---|---|
| Weight | 5.9 kg (13 lbs) without cable |
Radar
| Beam width | 4.9° H x 25° V |
|---|---|
| Max Range, scale | 24 NM |
| Max Operating Wind Speed | 100 knots (51 m/s) |
| Min Range, scale | 50 m / 200 ft / 50 yd |
| Radar Modes | Harbour, Offshore, Weather, North Up, Course Up, Relative motion, True Motion |
| Radar Technology | Pulse Compression |
| Rotation speed | 24 RPM |
