Raymarine Axiom+ 12 RV, 12 inch Multifunction Display with RV-100 transducer with LightHouse chart
Description

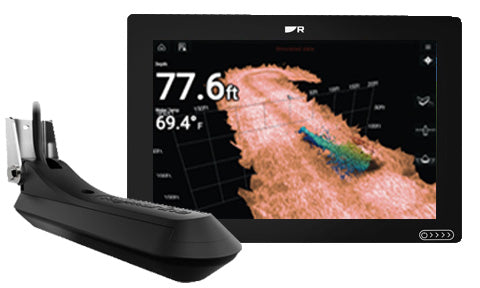

The Raymarine Axiom+ 12 RV is a new generation 12 inch all-in-one chartplotter with built-in RealVision 3D CHIRP sonar, designed to up your fishfinding game. Its all-weather IPS display is 25 percent brighter than the previous generation Axiom, and a powerful quad-core processor delivers fast, fluid chart redraw and responsive touch control.

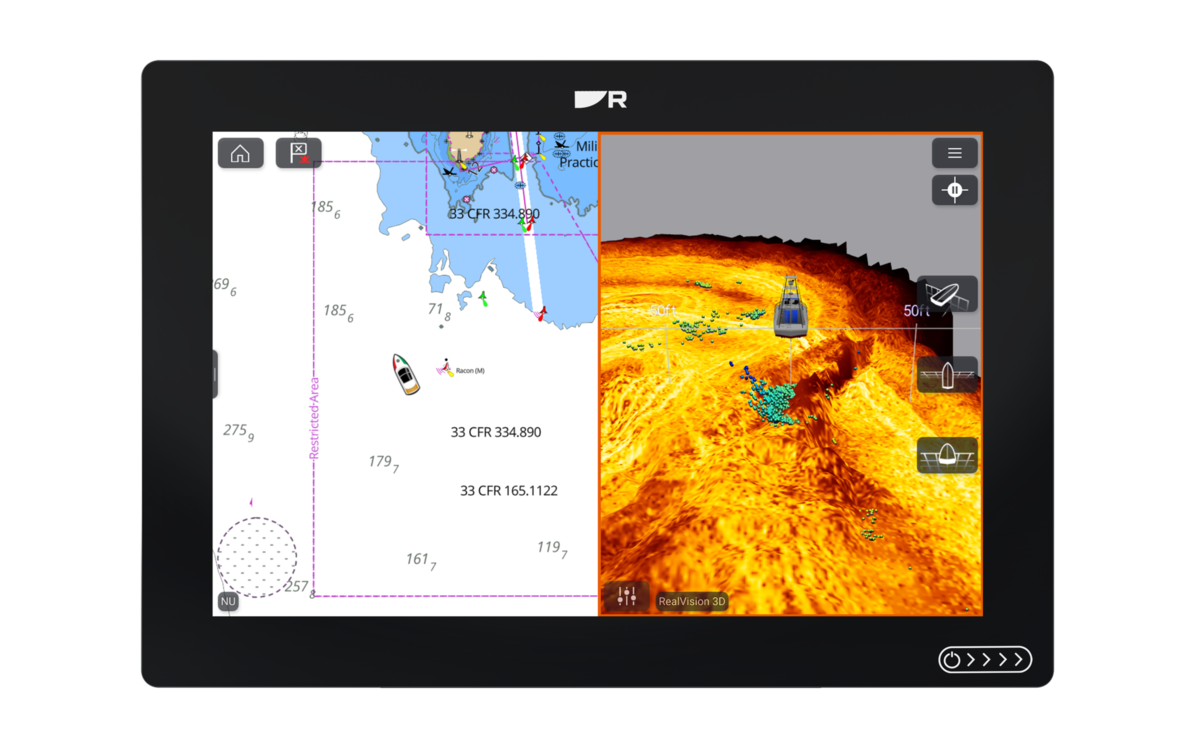

A built-in 600 W digital sonar at 50 kHz and 200 kHz works alongside CHIRP DownVision, CHIRP SideVision, conventional CHIRP and RealVision 3D, which provides a gyro-stabilised, GPS-locked view of the bottom and water column. The HydroTough nano-coated screen dispels water, oil and smudges for accurate touch control even when wet.
Running the LightHouse operating system with LightHouse, Navionics and C-MAP chart support, the Axiom+ 12 RV is ready to expand with Quantum and Cyclone radar, FLIR thermal cameras and ClearCruise augmented reality.

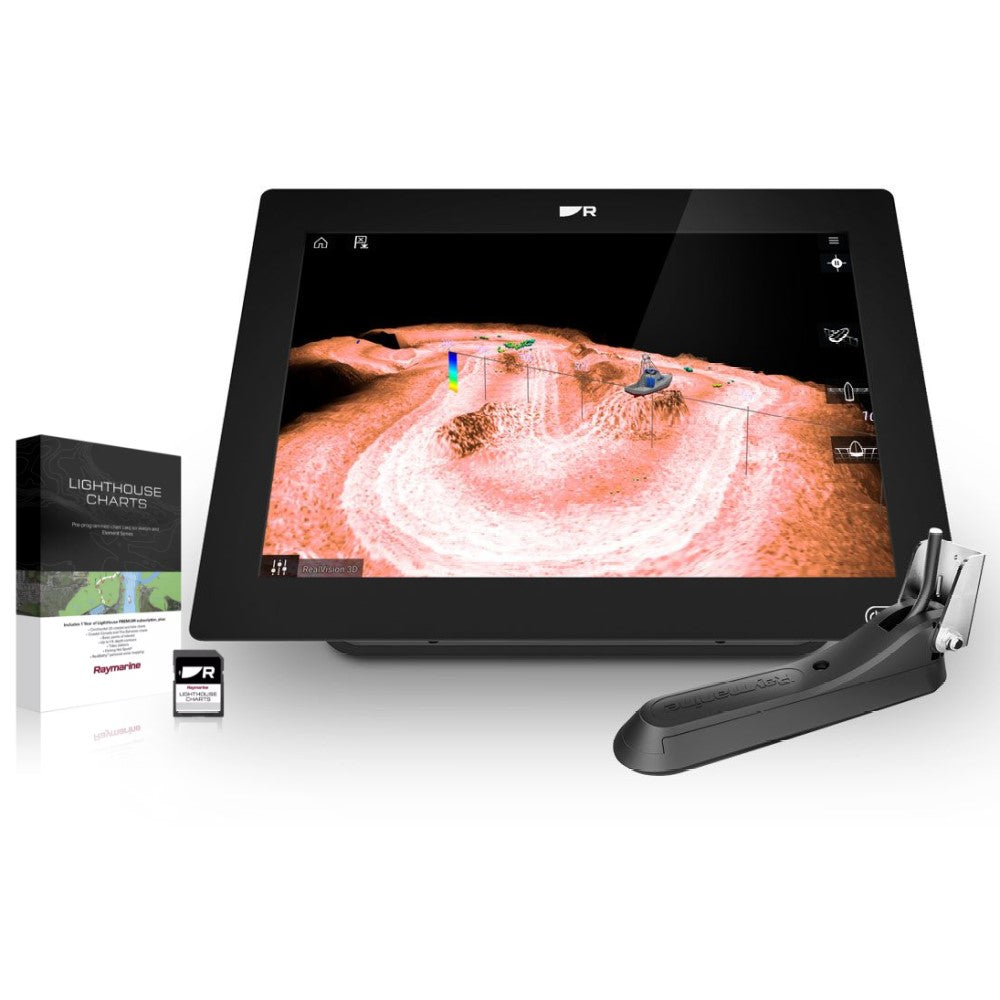

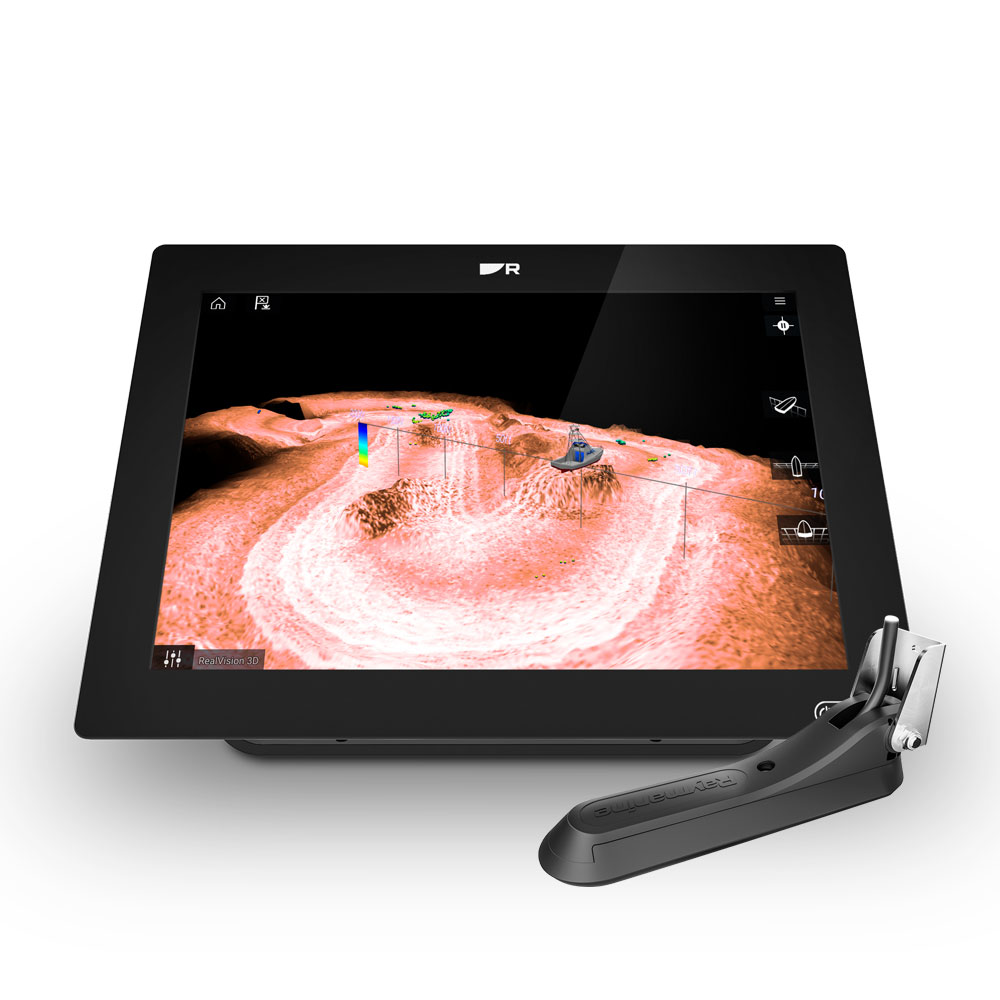

It is supplied with a preloaded LightHouse chart. This package also includes the RV-100 RealVision 3D transom mount transducer.
PRODUCT DETAILS
- New generation Axiom+ RV chartplotter with built-in RealVision 3D CHIRP sonar
- Built-in 600 W digital sonar at 50 kHz and 200 kHz for depth and bottom detail
- Four sonar channels: CHIRP conical, CHIRP DownVision, CHIRP SideVision and RealVision 3D
- RealVision 3D delivers a gyro-stabilised, GPS-locked view of the bottom and water column
- All-weather IPS display is 25 percent brighter than the previous generation Axiom
- HydroTough nano-coated, impact-resistant screen dispels water, oil and smudges
- Powerful quad-core processor for fast, fluid chart redraw and responsive touch control
- Runs the LightHouse operating system with LightHouse, Navionics and C-MAP chart support
- Ready to expand with Quantum and Cyclone radar, FLIR thermal cameras and ClearCruise augmented reality
- Built-in GPS/GNSS receiver with Wi-Fi and Bluetooth connectivity
- Supplied with the RV-100 RealVision 3D transom mount transducer
- Multifunction display (chartplotter)
- Trunnion bracket
- Trunnion knobs x 2
- Sun cover
- Panel mount gasket
- Threaded studs (M5 x 58) x 4
- Thumb nuts (M5) x 4
- Power / NMEA 2000 cable (1.5 m (4.92 ft) power lead, 0.5 m (1.64 ft) NMEA 2000 lead)
- DeviceNet to SeaTalkng adaptor cable 120 mm (4.7 in)
- Documentation
- RV-100 RealVision 3D transom mount transducer
- RV-100 transducer cable and mounting hardware
No exploded diagram available for this product.
Raymarine CPT-S In-Hull Transducer
Raymarine CPT-S Transom Mount Transducer
Raymarine CPT-S 0° Urethane Through Hull Transducer
Raymarine CPT-S 12° Urethane Through Hull Transducer
Raymarine CPT-S 20° Urethane Through Hull Transducer
Raymarine CPT-S 0° Bronze Through Hull Transducer
Raymarine CPT-S 12° Bronze Through Hull Transducer
Raymarine CPT-S 20° Bronze Through Hull Transducer
Raymarine CPT-100DVS DownVision Transom Mount Transducer
Raymarine CPT-110 DownVision Through Hull Transducer
Raymarine CPT-120 DownVision Through Hull Transducer
Raymarine RV-200 RealVision 3D Through Hull Transducer
Raymarine RV-300 RealVision 3D Through Hull Transducer
Raymarine RV-400 RealVision 3D Through Hull Transducer
Raymarine RV-212 RealVision 3D Through Hull Transducer
Raymarine RV-220 RealVision 3D Through Hull Transducer
Raymarine RV-312 RealVision 3D Through Hull Transducer
Raymarine RV-320 RealVision 3D Through Hull Transducer
Raymarine RV-412 RealVision 3D Through Hull Transducer
Raymarine RV-420 RealVision 3D Through Hull Transducer
Raymarine Front Mounting Kit for Axiom 12
Raymarine Rear Mounting Kit for Axiom 12 (inc. Rear Brackets, Bolts and Thumbnuts)
Raymarine Suncover for Axiom 12 (Front Mounting Kit)
Raymarine Adapter Plate for Axiom 12 to fit e12 Size Cutout
Raymarine Suncover for Axiom 12 (Trunnion or Surface Mounted)
Raymarine Adapter Plate for Axiom 12 to fit a12 Size Cutout
Raymarine Adapter Plate for Axiom 12 to fit C120/E120 Classic Size Cutout
Raymarine Metal Trunnion Mounting Kit for Axiom 12
Raymarine Axiom Power Cable 1.5m Right-Angled with NMEA 2000 Connector
Raymarine Axiom Power Cable 1.5m Straight with NMEA 2000 Connector
Raymarine Cyclone 55 Watts 3ft Open Array Radar with 15m Cables
Raymarine Cyclone 55 Watts 4ft Open Array Radar with 15m Cables
Raymarine Cyclone 55 Watts 6ft Open Array Radar with 15m Cables
Raymarine Cyclone Pro 110 Watt 3ft Open Array Radar With 15m Cables
Raymarine Cyclone Pro 110 Watt 4ft Open Array Radar With 15m Cables
Raymarine Cyclone Pro 110 Watt 6ft Open Array Radar With 15m Cables
Raymarine Cyclone Radar Pedestal 55 Watts
Raymarine Cyclone Pro Radar Pedestal 110 Watts
Raymarine Quantum 2 Q24D Wireless CHIRP Radar with 10m Power and Data Cables
Raymarine Quantum 2 Q24D Wireless CHIRP Radar with 15m Power and Data Cables
Raymarine Quantum Q24C Wireless CHIRP Radar with 10m Power Cable
Raymarine Quantum Q24C Wireless CHIRP Radar with 10m Power and Data Cable
Raymarine Quantum Q24C Wireless CHIRP Radar with 15m Power and Data Cable
Quantum 2 Black Q24D w/ 10m pwr and data
Raymarine Quantum Q24d Doppler Radar Black - 15m Power & data Cables
Display
| Screen size (diagonal) | 12" |
| Screen resolution | WXGA 1280 x 800 |
| Display type | IPS (In-Plane Switching), 24-bit colour |
| Brightness | 1800 nits / 1800 cd/m2 |
| Viewing angle | Top 88 deg / Bottom 88 deg / Left 88 deg / Right 88 deg |
| Protective coating | HydroTough oleophobic nano-coating |
| Touchscreen | Multi-touch, 2 simultaneous touches |
Sonar
| Built-in sonar | 600 W CHIRP digital sonar at 50 kHz and 200 kHz, with RealVision 3D |
| Sonar channels | CHIRP conical, CHIRP DownVision, CHIRP SideVision and RealVision 3D |
| Depth range (CHIRP conical) | 0.6 m (2 ft) to 274 m (900 ft) |
| Depth range (DownVision) | 0.6 m (2 ft) to 183 m (600 ft) |
| Depth range (SideVision) | 0.6 m (2 ft) to 91 m (300 ft) |
| Depth range (RealVision 3D) | 0.6 m (2 ft) to 91 m (300 ft) |
Connections
| Transducer connection | 25-pin RealVision connector (A80490 adaptor cable required for CPT-S style transducers) |
| Ethernet connection | RayNet (10/100 Mbits/s) |
| NMEA 2000 connection | DeviceNet (male connector built into power cable) |
| Accessory connection | USB Micro B |
| External storage | MicroSDXC card slot x 1 |
| Internal storage | 16 GB solid state (14 GB usable) |
| Wireless connections | Wi-Fi 802.11 b/g/n, Bluetooth V4.0 |
GNSS receiver
| GNSS compatibility | GPS, GLONASS, BeiDou |
| Position accuracy | Without SBAS: 15 m or better, 95% of the time. With SBAS: 5 m or better, 95% of the time |
| SBAS support | WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) |
| Channels | Track up to 28 satellites simultaneously |
| Antenna | Internal ceramic chip, mounted near top of unit |
| Refresh rate | 10 Hz (10 times per second) |
| Time to first fix from cold start | Less than 2 minutes |
Mounting
| Dimensions (trunnion mounted) | Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in) |
| Dimensions (surface/flush mounted) | Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in) |
Power
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 8 V dc to 16 V dc |
| Power consumption | 18.96 W |
| Fuse rating | 7 A |
| LEN (NMEA 2000 load equivalency number) | 1 |
Environmental
| Operating temperature | -25 C to +55 C (-13 F to 131 F) |
| Storage temperature | -30 C to +70 C (-22 F to 158 F) |
| Relative humidity | Up to 93% at 40 C (104 F) |
| Waterproof rating | IPx6 and IPx7 |
