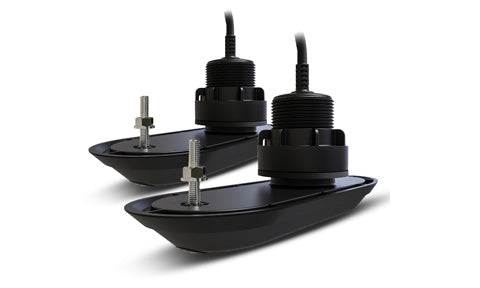

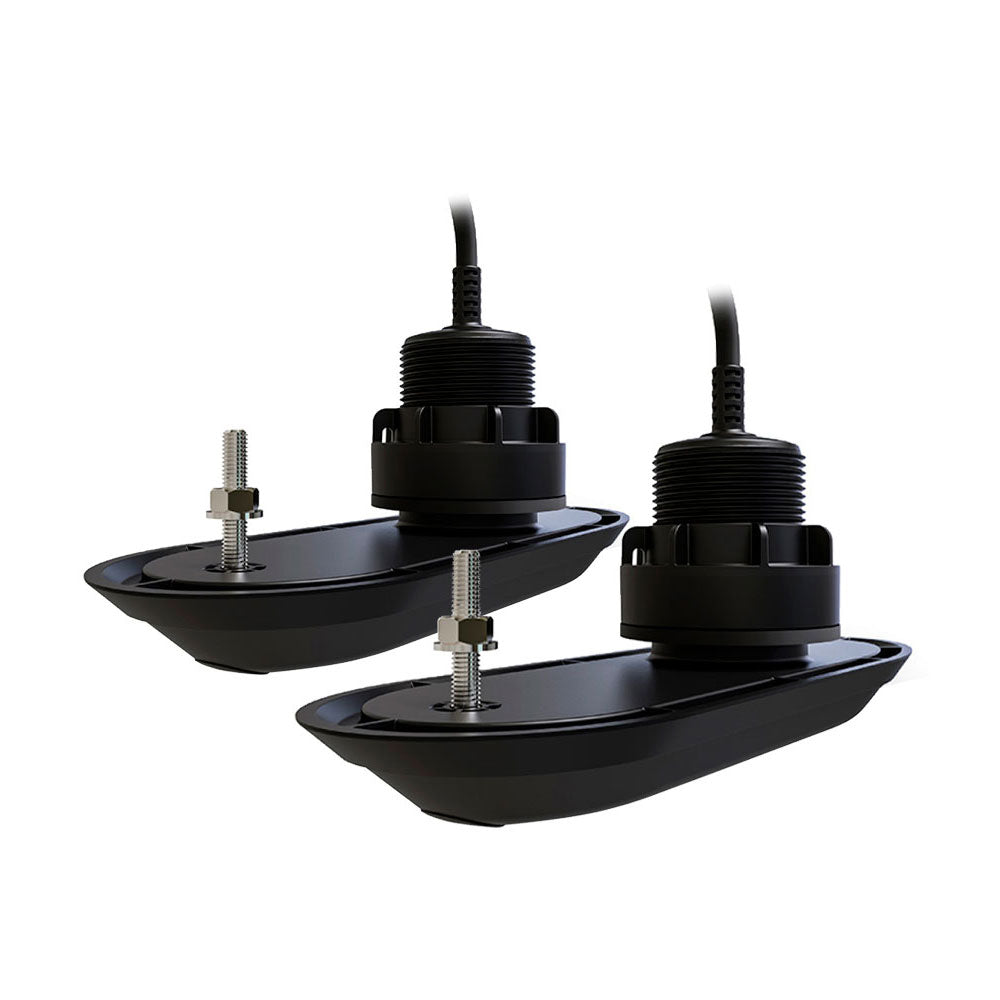

Raymarine RV-320 RealVision 3D Plastic Through Hull Transducers, Port and Starboard 20 Degree

Manufacturer Part No: T70321 | ID: 158623 | This price includes UK VAT at 20%

The RV-320 RealVision 3D transducer pack combines CHIRP DownVision, CHIRP SideVision, High Frequency CHIRP, and RealVision 3D into a two single transducer housings. The two through hull plastic transducers are for boats with 20 degree hull dead rise and connect to Axiom RealVision multifunction display using supplied Y cable and extension cable. Pack contains 1 x RV-320P (2 meter cable), 1x RV-320S (2 meter cable), 1 x Y-cable and 1 x 8 meters extension cabe.

RV-320 Plastic Through Hull Transducer Pack (with 20° deadrise compensation)

Designed for inboard or outboard boats, the RV-320 Plastic Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.

The RV-320 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-320 system also has a built-in fast response water temperature sensor for quick, accurate readings.

Raymarine’s RV-320 Plastic Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 13° to 20°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-320 system works even works great on trailered boats.

The RV-320 system features rugged plastic through hull bodies suitable for fiberglass, steel or aluminum hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet.)

  • RV-320P Plastic Port Transducer with 2-meter cable
  • RV-320S Plastic Starboard Transducer with 2-meter cable
  • RealVision 3D Transducer Y-Cable
  • RealVision 3D 8-meter (26-feet) Transducer Extension Cable
  • Anti-rotation bolt kit
  • Installation instructions
