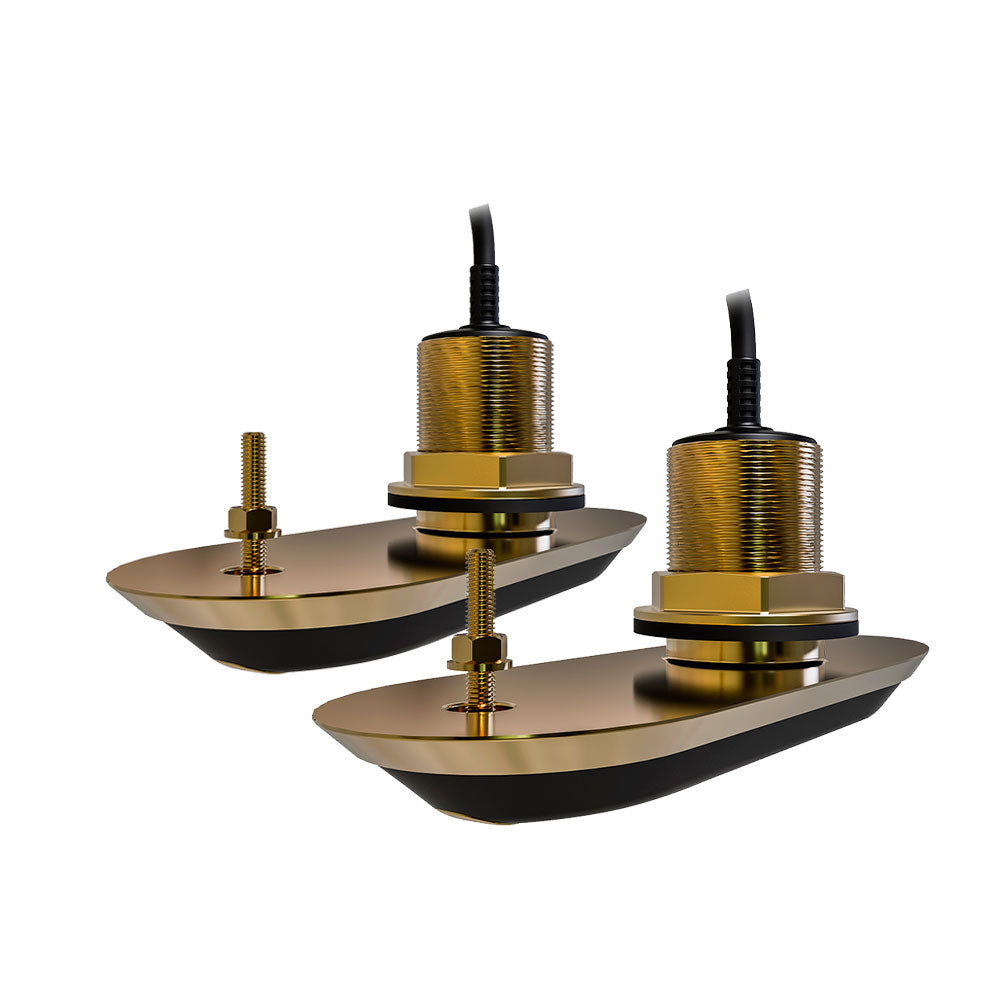

Raymarine RV-220 RealVision 3D Bronze Through Hull Transducers, Port and Starboard 20 Degree

Manufacturer Part No: T70319 | ID: 158616 | This price includes UK VAT at 20%
Price Checked √ - Free UK Delivery √

The RV-220 RealVision 3D transducer pack combines CHIRP DownVision, CHIRP SideVision, High Frequency CHIRP, and RealVision 3D into a two single transducer housings. The two through hull bronze transducers are for boats with 20 degree hull dead rise and connect to Axiom RealVision multifunction display using supplied Y cable and extension cable. Pack contains 1 x RV-220P (2 meter cable), 1x RV-220S (2 meter cable), 1 x Y-cable and 1 x 8 meters extension cabe.

RV-220 Bronze Through Hull Transducer Pack (with 20° deadrise compensation)

Designed for inboard or outboard boats, the RV-220 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.

The RV-220 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-220 system also has a built-in fast response water temperature sensor for quick, accurate readings.

Raymarine’s RV-220 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 13° to 20°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-220 system works great on trailered boats too.

The RV-220 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet.)

What’s in the Box?

  • RV-220P Bronze Port Transducer with 2-meter cable
  • RV-220S Bronze Starboard Transducer with 2-meter cable
  • RealVision 3D Transducer Y-Cable
  • RealVision 3D 8-meter (26-feet) Transducer Extension Cable
  • Anti-rotation bolt kit
  • Installation instructions
