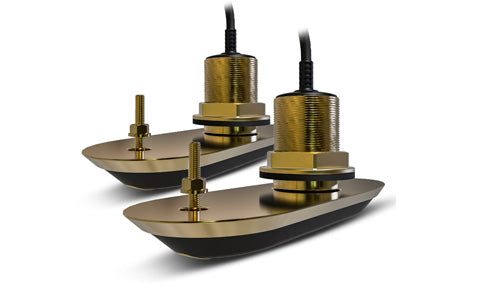

Raymarine RV-212 RealVision 3D Bronze Through Hull transducers Port and Starboard 12 Degree
Manufacturer Part No:
T70318 |
£1,534.63 ex-VAT
Price Checked √ - Free UK Delivery √
The RV-212 RealVision 3D transducer pack combines CHIRP DownVision, CHIRP SideVision, High Frequency CHIRP, and RealVision 3D into a two single transducer housings. The two through hull bronze transducers are for boats with 12 degree hull dead rise and connect to Axiom RealVision multifunction display using supplied Y cable and extension cable. Pack contains 1 x RV-212P (2 meter cable), 1x RV-212S (2 meter cable), 1 x Y-cable and 1 x 8 meters extension cabe.
RV-212 Bronze Through Hull Transducer Pack (with 12° deadrise compensation)
Designed for inboard or outboard boats, the RV-212 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.
The RV-212 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-212 system also has a built-in fast response water temperature sensor for quick, accurate readings.
Raymarine’s RV-212 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 1° to 12°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-212 system works great on trailered boats too.
The RV-212 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet.)
What’s in the Box?
- RV-212P Bronze Port Transducer with 2-meter cable
- RV-212S Bronze Starboard Transducer with 2-meter cable
- RealVision 3D Transducer Y-Cable
- RealVision 3D 8-meter (26-feet) Transducer Extension Cable
- Anti-rotation bolt kit
- Installation instructions
