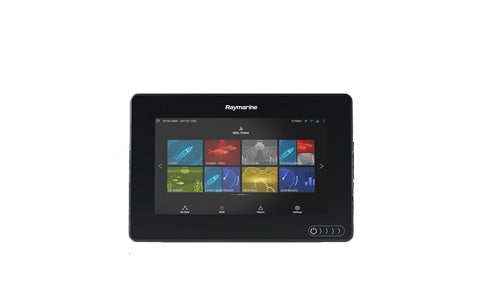

Raymarine Axiom 7 RV, 7 Inch MFD

Raymarine Axiom 7 RV, 7 Inch MFD

Manufacturer Part No: E70365 |
Price Checked √ - Free UK Delivery √ On Offer - Price Drop

The Axiom 7 RV is a 7 inch touch screen multifunction navigation display a powerful new multifunction navigation system from Raymarine. With the all new LightHouse 3 operating system, and blazing fast quad core performance, AXIOM will transform your time on the water. Has built in 3D RealVision, DownVision, 600W Sonar, GPS, Wi-Fi and Bluetooth.

Raymarine Axiom Power Cable 1.5m Straight with NMEA 2000 connector

Free UK Delivery √
Axiom 7, 9 and 12 Straight Power Cable with NMEA 2000 Connector 1.5 meters

£42.96 ex-VAT

Raymarine Axiom Power Cable 1.5m Right Angled with NMEA 2000 Connector

Free UK Delivery √
Axiom 7, 9 and 12 Right Angled Power Cable with NMEA 2000 Connector 1.5 meters

£35.83 ex-VAT

Raymarine Front Mounting Kit for Axiom 7

Free UK Delivery √
Front Mount Kit for Axiom 7 Includes 2 Trim Pieces and Suncover

£61.29 ex-VAT

Raymarine Axiom 7 Metal Brackets for rear mounting x2

Free UK Delivery √
Rear Mount Kit for Axiom 7 Includes Rear Brackets, Bolts and Thumbnuts

£34.17 ex-VAT

Raymarine Axiom 7 Rear Cover for Trunnion Mount and Rear Installation

Free UK Delivery √
Rear Cover for Axiom 7 when Trunnion Mounted and Rear Installations

£34.17 ex-VAT

Raymarine Suncover for Axiom 7 When using Front Mounting Kit

Free UK Delivery √
Front Mount Suncover for Axiom 7 When using Front Mounting Kit

£31.67 ex-VAT

Raymarine Suncover for Axiom 7 when rear mounted

Free UK Delivery √
Suncover for Axiom 7 when Rear Mounted (Surface)

£31.67 ex-VAT

Raymarine Suncover for Axiom 7 when Trunnion Mounted

Free UK Delivery √
Trunnion Mount Suncover for Axiom 7 - Poly

£28.75 ex-VAT

Raymarine Adapter Plate to fit Axiom 7 into e7 size cutout

The Axiom 7 adapter plate is used when replacing an existing legacy e7 Multifunction Display with an Axion 7, 7DV or Axion 7 RV uses existing fixing holes.

£59.63 ex-VAT

Raymarine RCR-Remote SD Card Reader and USB Socket

RCR-Remote SD Card Reader and USB Socket - Cable length 1 meter

£147.96 ex-VAT

Raymarine Metal Trunnion Mounting Kit for Axiom 7

Metal Trunnion Mounting Kit for Axiom 7

£62.33 ex-VAT

Raymarine RCR-1 Micro SD Card Card Reader

Price Checked √ - Free UK Delivery √
RCR-1 - remote card reader for Axiom and Axom XL Multifunction Displays

£86.25 ex-VAT

Raymarine Axiom RV Adaptor Cable 25 pin to 9 pin and 8 pin Y-Cable

Used to connect a DownVision or CHIRP and Conventional 600watt transducers to an Axiom RealVision multifunction display. Y-Cable (25 pin to 9 and 8 pin) to attach a DownVision (CPT-1xx) or (CPT-S) Transducer and an Airmar (CP370 style connector) transducer to Axiom RV

£84.97 ex-VAT

Raymarine Axiom RV Adaptor Cable 25 pin to 9 pin and 7 pin Y-Cable

Used to connect a DownVision or CHIRP and Conventional 600watt transducers to an Axiom RealVision multifunction display. Y-Cable (25 pin to 9 and 7 pin) to attach a DownVision (CPT-1xx) or (CPT-S) Transducer and an Airmar (direct connect to ax7/eSx7 MFD) transducer to Axiom RV

£85.83 ex-VAT

Raymarine Axiom RV Adaptor Cable 25 pin to 25 pin and 8 pin Y-Cable

Used to connect a RealVision and Conventional 600watt transducers to an Axiom RealVision multifunction display. Y-Cable (25 pin to 25 and 8 pin) to attach a RealVision 3D (RV-xxx) Transducer & an Airmar (CP370 style connector) transducer to Axiom RV

£84.97 ex-VAT

Raymarine Axiom RV Adaptor Cable 25 pin to 25 pin and 7 pin Y-Cable

Used to connect a RealVision and Conventional 600watt transducers to an Axiom RealVision multifunction display. Y-Cable (25 pin to 25 and 7 pin) to attach a RealVision 3D (RV-xxx)Transducer & an Airmar (direct connect to ax7/eSx7 MFD) transducer to Axiom RV

£84.97 ex-VAT

Raymarine Axiom RV Adaptor Cable 25 pin to 9 pin

Used to connect a DownVision or CHIRP transducer to an Axiom RealVision multifunction display. Adaptor Cable (25 pin to 9 pin) attach DownVision (CPT-1xx) or (CPTS) transducer to Axiom RV or Axiom Pro RVX can also be used to connect a Conical CHIRP transducer to an Axiom Pro S mu...

£50.46 ex-VAT

Raymarine Axiom RV Adaptor Cable 25 pin to 8 pin

Used to connect a Conventional 600watt transducers to an Axiom RealVision multifunction display. Adaptor Cable (25 pin to 8 pin) to attach an existing 8 pin Airmar (CP370 style connector) transducer to Axiom RV

£54.63 ex-VAT

Raymarine Axiom RV Adaptor Cable 25 pin to 7 pin

Used to connect a Conventional 600watt transducers to an Axiom RealVision multifunction display. Adaptor Cable (25 pin to 7 pin) to attach an existing 7 pin Airmar (direct connect to ax7/eSx7 MFD and DSM25) transducer to Axiom RV

£52.13 ex-VAT

Raymarine Axiom RV 45mm Right Angle Connector for Axiom Transducers

Axiom RV and Axiom Pro RVX 45mm Right Angle Connector for Axiom Transducers 25 pin to 25 pin

£66.00 ex-VAT

Raymarine Axiom 0.3m Y-Cable for RealVision 3D Transducers

Used to connect two RealVision 3D transducers to an Axiom RealVision multifunction display. 0.3m Y-Cable for RealVision 3D Transducers. The RealVision 3D Split Transducer Y-Cable is used in through hull transducers installations using dual deadrise compensated transducers. The Y-Cable is used t...

£65.79 ex-VAT

Raymarine Axiom 8m RealVision 3D Transducer Extension Cable 25 pin

8 meter extension cable used to extend RealVision 3D transducer cable connected to an Axiom RealVision multifunction display. RealVision 3D Transducer Extension Cables work with both the transom mounted RV-100, as well as through-hull RV-200 and RV-300 series transducers. Each extension cable f...

£152.13 ex-VAT

Raymarine Axiom 5m RealVision 3D Transducer Extension Cable 25 pin

5 meter extension cable used to extend RealVision 3D transducer cable connected to an Axiom RealVision multifunction display. RealVision 3D Transducer Extension Cables work with both the transom mounted RV-100, as well as through-hull RV-200 and RV-300 series transducers. Each extension cable f...

£97.96 ex-VAT

Raymarine Axiom 3m RealVision 3D Transducer Extension Cable 25 pin

3 meter extension cable used to extend RealVision 3D transducer cable connected to an Axiom RealVision multifunction display. RealVision 3D Transducer Extension Cables work with both the transom mounted RV-100, as well as through-hull RV-200 and RV-300 series transducers. Each extension cable f...

£89.63 ex-VAT

Raymarine Axiom RV 45mm Right Angle Connector for Axiom Transducers

Axiom RV and Axiom Pro RVX 45mm Right Angle Connector for Axiom Transducers 25 pin to 25 pin

£66.00 ex-VAT


New Axiom+

Introducing the Raymarine Axiom Multifunction Display

Axiom Overview

Axiom In the Box


Axiom 7, Axiom+ 7

1. MFD (supplied with Trunnion adaptor fitted)

2. Trunnion bracket

3. Trunnion knobs x 2

4. Suncover — Trunnion mount

5. Panel mount gasket for surface/flush mounting

6. M5x58 Threaded studs x 4

7. M5 Thumb nuts x 4

8. Documentation pack

9. Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).

E70364–01 is also supplied with a CPT-S transom transducer and associated fittings.

E70364–02 is also supplied with a DownVision™ CPT-100DVS transducer and associated fittings.

E70365–03 is also supplied with a RealVision™ 3D RV-100 transducer and associated fittings.


Axiom, Axiom+ 9 and 12

1. MFD

2. Trunnion bracket

3. Trunnion knobs x 2

4. Suncover

5. Panel mount gasket for surface/flush mounting

6. Rear mounting brackets:  a. supplied with 9” MFD b. supplied with 12” MFD

7. Documentation pack

8. Power / NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).

9. M5x58 Threaded studs x 4

10. M5 Thumb nuts x 4

E70367–02 is also supplied with a DownVision™ CPT-100DVS transducer and associated fittings.

E70367–03 is also supplied with a RealVision™ 3D RV-100 transducer and associated fittings.

E70369–03 is also supplied with a RealVision™ 3D RV-100 transducer and associated fittings.


Axiom, Axiom+ 7 trunnion mount dimensions

A = 250.4 mm (9.86 in)

B  = 162.5 mm (6.4 in)

C = 76.4 mm (3 in)

D • Straight connectors = 218 mm (8.58 in)

    • Right-angled connectors = 198 mm (7.79 in)


Axiom, Axiom+ 7 surface and flush mount dimensions Using adaptor bracket

A = 201.1 mm (7.92 in)

B = 133 mm (5.24 in)

C = 8 mm (0.32 in)

D = 93.1 mm (3.67 in)

E • Straight connectors = 218 mm (8.58 in)

     • Right-angled connectors = 198 mm (7.79 in)






Axiom, Axiom+ 7 surface and flush mount dimensions Using Rear mount kit

A = 201.1 mm (7.92 in)

B = 133 mm (5.24 in)

C = 8 mm (0.32 in)

D = 93.1 mm (3.67 in)

E • Straight connectors = 218 mm (8.58 in)

     • Right-angled connectors = 198 mm (7.79 in)

F = 73 mm ( 2.87 in)

G = 132 mm (5.2 in)


Axiom, Axiom+ 9 trunnion mount dimensions

A =  265.03 mm (10.43 in)

B = 187.81 (7.39 in)

C = 76.71 mm (3.02 in)

D = 65 mm (2.56 in)

E • Straight connectors = 178 mm (7.01 in)

    • Right-angled connectors = 158 mm (6.22 in)


Axiom, Axiom+ 9 surface and flush mount dimensions

A = 244.08 mm (9.64 in)

B = 157.78 mm (6.21 in)

C = 8 mm (0.31 in)

D = 100.8 mm (3.97 in)

E = 157 mm 6.18 in)

F • Straight connectors = 178 mm (7.01 in)

   • Right-angled connectors = 158 mm (6.22 in)


Axiom, Axiom+ 12 trunnion mount dimensions

A =  314 mm (12.36 in)

B = 226.72 mm (8.93 in)

C = 76.2 mm (3 in)

D = 65 mm (2.56 in)

E • Straight connectors = 178 mm (7.01 in)

    • Right-angled connectors = 158 mm (6.22 in)


Axiom, Axiom+ 12 surface and flush mount dimensions

A = 314 mm (12.36 in)

B = 226.72 mm (8.93 in)

C = 8 mm (0.31 in)

D = 79.3 mm (3.12 in)

E = 222 mm (8.74 in)

F • Straight connectors = 178 mm (7.01 in)

   • Right-angled connectors = 158 mm (6.22 in)



DISPLAY
Display Size 7.0" Optically Bonded LCD
Display Resolution 800 x 480 WVGA
Display Type Multitouch
Brightness 1,200 nits
Viewing Angle Degrees: 60 / 70 / 70 / 70 (Top / Bottom / Left / Right)
PHYSICAL
Dimensions 210 x 142 x 77mm (7.92" x 5.24" x 3.00")
Weight 1.52kg (3.35lbs)
Mounting Top, Flush, Front, Bracket
Waterproof Rating IPX6 / IPX7
Operating Temperature -25deg C to +55deg C (-13deg F to 131deg F)
Storage Temp -30deg C to +70deg C (- 22deg F to 158deg F)
POWER
Voltage 12V DC (8 V to 16 VDC)
Power Consumption (Full brightness) TBD
Power Consumption (Powersave Mode)

TBD


SENSORS
GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS- 10Hz 72 Channel | External Accessory: RS150 (E70310)
Sonar Type (Built-in) DV model - Built-in DownVision™ + 600W | RV model - Built-in RealVision™ 3D + 600W
Sonar Connection DV variant = 9 pin DownVision™ type connector
RV variant = 25pin RealVision™ type connector (see transducer adaptor list for connecting 600W)
See adaptor and Y-cables to connect Raymarine CPT type, new RealVision 3D and/or Airmar 600W
External sonar - RayNet
Sonar Depth CHIRP Sonar = 274m (900 feet) | DownVision™ = 183m (600 feet)
SideVision™ = 91m (300 feet) | RealVision™ 3D = 91m (300 feet)
External Sonar Yes - CP100, CP200, CP370, CP470, CP570 via RayNet
Radar Yes - Quantum, Digital, HD Color and Super HD Color Radars
AIS Yes - NMEA2000
Autopilot Control Yes - Evolution Autopilot
Thermal Night Vision Yes - IP camera input only
Video / Camera Up to 10 IP Cameras
Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM (N. America Only)
[Weather features available in future Lighthouse 3 software update]
Audio Integration NMEA2000 / *Bluetooth / *SiriusXM Audio
[*Available in future Lighthouse 3 software update]
Digital Switching Yes - Empirbus
Remote Control *RMK-10 (A80438) & *RCU-3 (E62351)
[*Available in future Lighthouse 3 software update]
