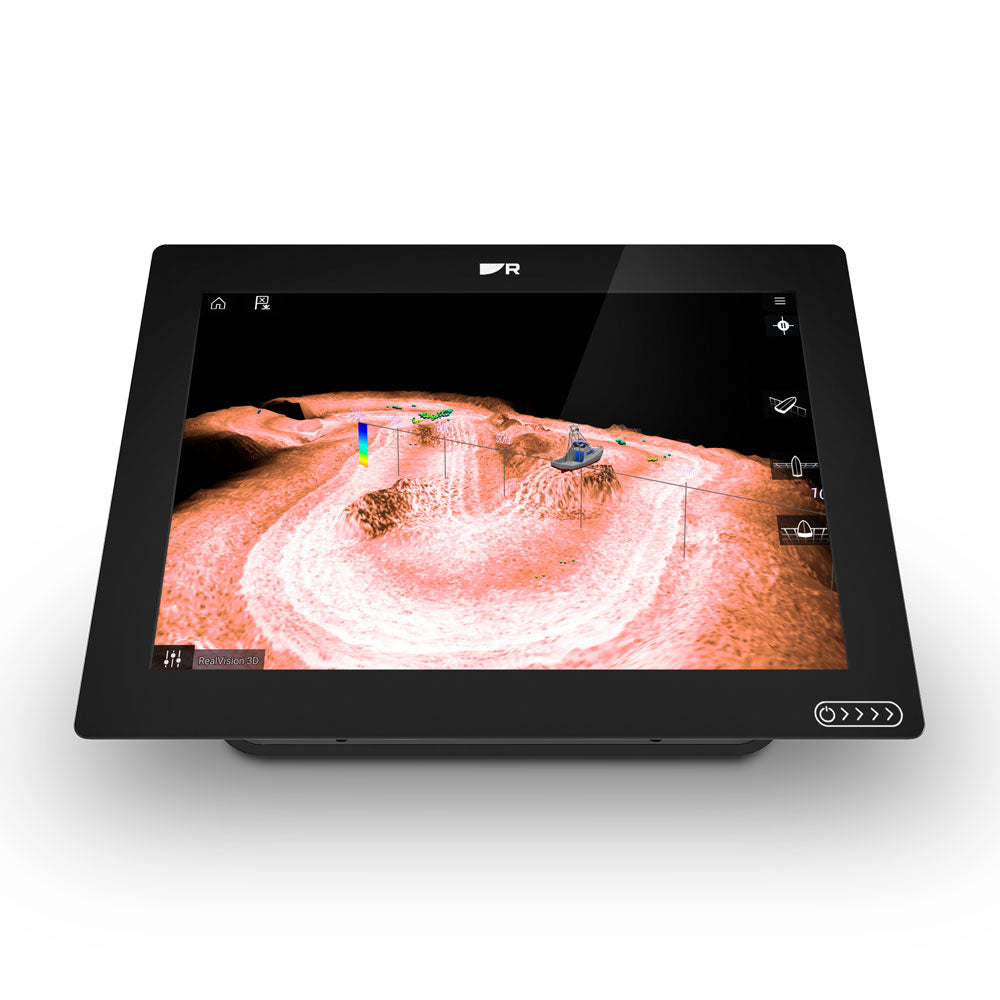

Raymarine Axiom+ 12 RV, 12 inch MFD
The Axiom+ 12 RV is a new generation of award-winning Raymarine multifunction displays. Optimised for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts and navigate with augmented reality. IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays. Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls. Has built in 3D RealVision, DownVision, 600W Sonar, GPS, Wi-Fi and Bluetooth.
Raymarine Axiom RV Adaptor Cable 25 pin to 9 pin and 8 pin Y-Cable
£84.97 ex-VAT
Raymarine Axiom RV Adaptor Cable 25 pin to 9 pin and 7 pin Y-Cable
£85.83 ex-VAT
Raymarine Axiom RV Adaptor Cable 25 pin to 25 pin and 8 pin Y-Cable
£84.97 ex-VAT
Raymarine Axiom RV Adaptor Cable 25 pin to 25 pin and 7 pin Y-Cable
£84.97 ex-VAT
Raymarine Axiom RV Adaptor Cable 25 pin to 9 pin
£50.46 ex-VAT
Raymarine Axiom RV Adaptor Cable 25 pin to 8 pin
£54.63 ex-VAT
Raymarine Axiom RV Adaptor Cable 25 pin to 7 pin
£52.13 ex-VAT
Raymarine Axiom RV 45mm Right Angle Connector for Axiom Transducers
£66.00 ex-VAT
Raymarine Axiom 0.3m Y-Cable for RealVision 3D Transducers
£65.79 ex-VAT
Raymarine Axiom 8m RealVision 3D Transducer Extension Cable 25 pin
£152.13 ex-VAT
Raymarine Axiom 5m RealVision 3D Transducer Extension Cable 25 pin
£97.96 ex-VAT
Raymarine Axiom 3m RealVision 3D Transducer Extension Cable 25 pin
£89.63 ex-VAT
Raymarine Axiom RV 45mm Right Angle Connector for Axiom Transducers
£66.00 ex-VAT
New Axiom+
Introducing the Raymarine Axiom Multifunction Display
Axiom Overview
Axiom In the Box
Axiom 7, Axiom+ 7
1. MFD (supplied with Trunnion adaptor fitted)
2. Trunnion bracket
3. Trunnion knobs x 2
4. Suncover — Trunnion mount
5. Panel mount gasket for surface/flush mounting
6. M5x58 Threaded studs x 4
7. M5 Thumb nuts x 4
8. Documentation pack
9. Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).
E70364–01 is also supplied with a CPT-S transom transducer and associated fittings.
E70364–02 is also supplied with a DownVision™ CPT-100DVS transducer and associated fittings.
E70365–03 is also supplied with a RealVision™ 3D RV-100 transducer and associated fittings.
Axiom, Axiom+ 9 and 12
1. MFD
2. Trunnion bracket
3. Trunnion knobs x 2
4. Suncover
5. Panel mount gasket for surface/flush mounting
6. Rear mounting brackets: a. supplied with 9” MFD b. supplied with 12” MFD
7. Documentation pack
8. Power / NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).
9. M5x58 Threaded studs x 4
10. M5 Thumb nuts x 4
E70367–02 is also supplied with a DownVision™ CPT-100DVS transducer and associated fittings.
E70367–03 is also supplied with a RealVision™ 3D RV-100 transducer and associated fittings.
E70369–03 is also supplied with a RealVision™ 3D RV-100 transducer and associated fittings.
Axiom, Axiom+ 7 trunnion mount dimensions
A = 250.4 mm (9.86 in)
B = 162.5 mm (6.4 in)
C = 76.4 mm (3 in)
D • Straight connectors = 218 mm (8.58 in)
• Right-angled connectors = 198 mm (7.79 in)
Axiom, Axiom+ 7 surface and flush mount dimensions Using adaptor bracket
A = 201.1 mm (7.92 in)
B = 133 mm (5.24 in)
C = 8 mm (0.32 in)
D = 93.1 mm (3.67 in)
E • Straight connectors = 218 mm (8.58 in)
• Right-angled connectors = 198 mm (7.79 in)
Axiom, Axiom+ 7 surface and flush mount dimensions Using Rear mount kit
A = 201.1 mm (7.92 in)
B = 133 mm (5.24 in)
C = 8 mm (0.32 in)
D = 93.1 mm (3.67 in)
E • Straight connectors = 218 mm (8.58 in)
• Right-angled connectors = 198 mm (7.79 in)
F = 73 mm ( 2.87 in)
G = 132 mm (5.2 in)
Axiom, Axiom+ 9 trunnion mount dimensions
A = 265.03 mm (10.43 in)
B = 187.81 (7.39 in)
C = 76.71 mm (3.02 in)
D = 65 mm (2.56 in)
E • Straight connectors = 178 mm (7.01 in)
• Right-angled connectors = 158 mm (6.22 in)
Axiom, Axiom+ 9 surface and flush mount dimensions
A = 244.08 mm (9.64 in)
B = 157.78 mm (6.21 in)
C = 8 mm (0.31 in)
D = 100.8 mm (3.97 in)
E = 157 mm 6.18 in)
F • Straight connectors = 178 mm (7.01 in)
• Right-angled connectors = 158 mm (6.22 in)
Axiom, Axiom+ 12 trunnion mount dimensions
A = 314 mm (12.36 in)
B = 226.72 mm (8.93 in)
C = 76.2 mm (3 in)
D = 65 mm (2.56 in)
E • Straight connectors = 178 mm (7.01 in)
• Right-angled connectors = 158 mm (6.22 in)
Axiom, Axiom+ 12 surface and flush mount dimensions
A = 314 mm (12.36 in)
B = 226.72 mm (8.93 in)
C = 8 mm (0.31 in)
D = 79.3 mm (3.12 in)
E = 222 mm (8.74 in)
F • Straight connectors = 178 mm (7.01 in)
• Right-angled connectors = 158 mm (6.22 in)
| TECHNICAL SPECIFICATIONS | ||||
| MODEL | Axiom+ 7. | Axiom+ 9 | Axiom+ 12 | |
| Display Size | 7.0 inch High Density IPS | 9.0 inch High Density IPS | 12.1 inch High Density IPS |
| Display Resolution | 1024 x 600 (WSVGA) | 1280 x 720 (WXGA) | 1280 x 800 (WXGA) |
| Display Type | Multitouch with HydroTough™ rugged hydrophobic coating | ||
| Brightness | 1,500 nits | 1,500 nits | 1,800 nits |
| Viewing Angle | 85° Top, Bottom, Left, Right | 85° Top, Bottom, Left, Right | 88° Top, Bottom, Left, Right |
| Dimensions W x H x D |
210 x 142 x 77mm 7.92 x 5.24 x 3.0in (Excluding trunnion and cables) |
244 x 158 x 77mm 9.65 x 6.22 x 3.0in (Excluding trunnion and cables) |
314 x 217 x 77mm 12.36 x 8.54 x 3.0in (Excluding trunnion and cables) |
| Weight | 3 lbs | 5 lbs | 6.5 lbs |
| Mounting Options | Surface, Flush, Trunnion, (Front installation bracket available) | ||
| Waterproof Rating | IPX6 / IPX7 | ||
| Operating Temperature Range | -25°C to +55°C (-13°F to +131°F) | ||
| Storage Temperature Range | -30°C to +70°C (-22°F to +158°F) | ||
| Voltage | 12V DC (8V to 16V DC) | ||
| Power Consumption (Full brightness) | 7.34 Watts. RV Sonar version 9.84 Watts | 8.95 Watts. RV Sonar version 11.98 Watts | 15.48 Watts. RV Sonar version 19.96 Watts |
| GNSS / GPS | Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required |
||
| Sonar Type (Built-in) | RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D | ||
| Sonar Connections | 25pin RealVision™ type connector | ||
| Sonar Depth | High CHIRP Sonar = 900 feet (274m) | DownVision™ = 600 feet (183m) | SideVision™ = 300 feet (91m) | RealVision™ 3D = 300 feet (91m) | ||
| External Sonar Option | Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet | ||
| Radar | Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars | ||
| AIS | Yes - NMEA2000 compatible | ||
| Autopilot Control | Yes - Evolution Autopilot | ||
| Thermal Night Vision | Yes FLIR AX8, M232, M300 Series, M400, M500 | ||
| Video / Camera | Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras) | ||
| Weather | GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM - N. America Only | ||
| Audio | NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio | ||
| Digital Switching | Yes - Empirbus & C-Zone compatible | ||
| Remote Control | Yes Optional RMK-10 (A80438) | ||
| Ethernet | 1 x 10/100 Mbit/s Network (RayNet) | ||
| NMEA0183 | No | ||
| NMEA2000 | NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter | ||
| SeaTalkNG | Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box) | ||
| USB | 1 x USB microAB | ||
| Wi-Fi | WiFi - 802.11 a/b/g/n | ||
| BlueTooth | Bluetooth v4.0 | ||
| Cartography | Lighthouse Charts, Navionics, and C-MAP compatible | ||
| Waypoint/Routes/Tracks (Wpts/Rts/Trk) | 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts | ||
| Internal Memory | 16 GB Solid State | ||
| External Memory | 1x MicroSD Card Slot | ||
| Languages | 24 | ||
| Conformances | NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210 | ||
| Languages | 24 | ||
| Conformances | NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210 | ||
