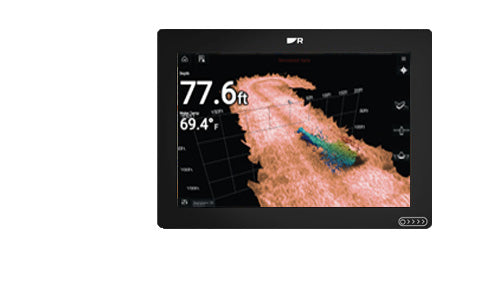

Raymarine Axiom+ 9 RV, 9 inch MFD

Raymarine Axiom+ 9 RV, 9 inch MFD

Manufacturer Part No: E70637 | £1,196.10 ex-VAT
Price Checked √ - Free UK Delivery √

The Axiom+ 9 RV is a new generation of award-winning Raymarine multifunction displays. Optimised for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts and navigate with augmented reality. IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays. Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls. Has built in 3D RealVision, DownVision, 600W Sonar, GPS, Wi-Fi and Bluetooth.

Raymarine Metal Trunnion Mounting Kit for Axiom 9

Free UK Delivery √
Metal Trunnion Mounting Kit for Axiom 9 Includes 2 Knobs

£72.50 ex-VAT

Raymarine Front Mounting kit for Axiom 9

Free UK Delivery √
Front Mount Kit for Axiom 9 Includes 2 Trim Pieces and Suncover

£65.67 ex-VAT

Raymarine Rear Mounting kit for Axiom 9 inc Rear Brackets, bolts and thumbnuts

Free UK Delivery √
Rear Mount Kit for Axiom 9 Includes Rear Brackets, Bolts and Thumbnuts

£37.50 ex-VAT

Raymarine Axiom Power Cable 1.5m Straight with NMEA 2000 connector

Free UK Delivery √
Axiom 7, 9 and 12 Straight Power Cable with NMEA 2000 Connector 1.5 meters

£42.96 ex-VAT

Raymarine Axiom Power Cable 1.5m Right Angled with NMEA 2000 Connector

Free UK Delivery √
Axiom 7, 9 and 12 Right Angled Power Cable with NMEA 2000 Connector 1.5 meters

£35.83 ex-VAT

Raymarine Suncover for Axiom 9 when using front mounting kit

Suncover for Axiom 9 when using front mounting kit

£37.13 ex-VAT

Raymarine Suncover for Axiom 9 when Trunnion or Surface Mounted

Suncover for Axiom 9 when Trunnion or Surface Mounted

£35.83 ex-VAT

Raymarine Adapter Plate to fit Axiom 9 into C70 size cutout

The Axiom 9 adapter plate is used when replacing an existing legacy C70 Classic Multifunction Display with an Axion 9 or Axion 9 RV requires new fixing holes.

£53.33 ex-VAT

Raymarine Adapter Plate to fit Axiom 9 into a9 size cutout

The Axiom 9 adapter plate is used when replacing an existing legacy a95, a97 or a98 Touch Sreen Multifunction Display with an Axion 9 or Axion 9 RV uses existing fixing holes.

£59.63 ex-VAT

Raymarine RCR-Remote SD Card Reader and USB Socket

RCR-Remote SD Card Reader and USB Socket - Cable length 1 meter

£147.96 ex-VAT

Raymarine Adapter Plate to fit Axiom 9 into C80 E80 size cutout

The Axiom 9 adapter plate is used when replacing an existing legacy C80 or E80 Classic Multifunction Display with an Axion 9 or Axion 9 RV requires new fixing holes.

£56.29 ex-VAT

Raymarine RCR-1 Micro SD Card Card Reader

Price Checked √ - Free UK Delivery √
RCR-1 - remote card reader for Axiom and Axom XL Multifunction Displays

£86.25 ex-VAT

Raymarine Axiom RV Adaptor Cable 25 pin to 9 pin and 8 pin Y-Cable

Used to connect a DownVision or CHIRP and Conventional 600watt transducers to an Axiom RealVision multifunction display. Y-Cable (25 pin to 9 and 8 pin) to attach a DownVision (CPT-1xx) or (CPT-S) Transducer and an Airmar (CP370 style connector) transducer to Axiom RV

£84.97 ex-VAT

Raymarine Axiom RV Adaptor Cable 25 pin to 9 pin and 7 pin Y-Cable

Used to connect a DownVision or CHIRP and Conventional 600watt transducers to an Axiom RealVision multifunction display. Y-Cable (25 pin to 9 and 7 pin) to attach a DownVision (CPT-1xx) or (CPT-S) Transducer and an Airmar (direct connect to ax7/eSx7 MFD) transducer to Axiom RV

£85.83 ex-VAT

Raymarine Axiom RV Adaptor Cable 25 pin to 25 pin and 8 pin Y-Cable

Used to connect a RealVision and Conventional 600watt transducers to an Axiom RealVision multifunction display. Y-Cable (25 pin to 25 and 8 pin) to attach a RealVision 3D (RV-xxx) Transducer & an Airmar (CP370 style connector) transducer to Axiom RV

£84.97 ex-VAT

Raymarine Axiom RV Adaptor Cable 25 pin to 25 pin and 7 pin Y-Cable

Used to connect a RealVision and Conventional 600watt transducers to an Axiom RealVision multifunction display. Y-Cable (25 pin to 25 and 7 pin) to attach a RealVision 3D (RV-xxx)Transducer & an Airmar (direct connect to ax7/eSx7 MFD) transducer to Axiom RV

£84.97 ex-VAT

Raymarine Axiom RV Adaptor Cable 25 pin to 9 pin

Used to connect a DownVision or CHIRP transducer to an Axiom RealVision multifunction display. Adaptor Cable (25 pin to 9 pin) attach DownVision (CPT-1xx) or (CPTS) transducer to Axiom RV or Axiom Pro RVX can also be used to connect a Conical CHIRP transducer to an Axiom Pro S mu...

£50.46 ex-VAT

Raymarine Axiom RV Adaptor Cable 25 pin to 8 pin

Used to connect a Conventional 600watt transducers to an Axiom RealVision multifunction display. Adaptor Cable (25 pin to 8 pin) to attach an existing 8 pin Airmar (CP370 style connector) transducer to Axiom RV

£54.63 ex-VAT

Raymarine Axiom RV Adaptor Cable 25 pin to 7 pin

Used to connect a Conventional 600watt transducers to an Axiom RealVision multifunction display. Adaptor Cable (25 pin to 7 pin) to attach an existing 7 pin Airmar (direct connect to ax7/eSx7 MFD and DSM25) transducer to Axiom RV

£52.13 ex-VAT

Raymarine Axiom RV 45mm Right Angle Connector for Axiom Transducers

Axiom RV and Axiom Pro RVX 45mm Right Angle Connector for Axiom Transducers 25 pin to 25 pin

£66.00 ex-VAT

Raymarine Axiom 0.3m Y-Cable for RealVision 3D Transducers

Used to connect two RealVision 3D transducers to an Axiom RealVision multifunction display. 0.3m Y-Cable for RealVision 3D Transducers. The RealVision 3D Split Transducer Y-Cable is used in through hull transducers installations using dual deadrise compensated transducers. The Y-Cable is used t...

£65.79 ex-VAT

Raymarine Axiom 8m RealVision 3D Transducer Extension Cable 25 pin

8 meter extension cable used to extend RealVision 3D transducer cable connected to an Axiom RealVision multifunction display. RealVision 3D Transducer Extension Cables work with both the transom mounted RV-100, as well as through-hull RV-200 and RV-300 series transducers. Each extension cable f...

£152.13 ex-VAT

Raymarine Axiom 5m RealVision 3D Transducer Extension Cable 25 pin

5 meter extension cable used to extend RealVision 3D transducer cable connected to an Axiom RealVision multifunction display. RealVision 3D Transducer Extension Cables work with both the transom mounted RV-100, as well as through-hull RV-200 and RV-300 series transducers. Each extension cable f...

£97.96 ex-VAT

Raymarine Axiom 3m RealVision 3D Transducer Extension Cable 25 pin

3 meter extension cable used to extend RealVision 3D transducer cable connected to an Axiom RealVision multifunction display. RealVision 3D Transducer Extension Cables work with both the transom mounted RV-100, as well as through-hull RV-200 and RV-300 series transducers. Each extension cable f...

£89.63 ex-VAT

Raymarine Axiom RV 45mm Right Angle Connector for Axiom Transducers

Axiom RV and Axiom Pro RVX 45mm Right Angle Connector for Axiom Transducers 25 pin to 25 pin

£66.00 ex-VAT


New Axiom+

Introducing the Raymarine Axiom Multifunction Display

Axiom Overview

Axiom In the Box


Axiom 7, Axiom+ 7

1. MFD (supplied with Trunnion adaptor fitted)

2. Trunnion bracket

3. Trunnion knobs x 2

4. Suncover — Trunnion mount

5. Panel mount gasket for surface/flush mounting

6. M5x58 Threaded studs x 4

7. M5 Thumb nuts x 4

8. Documentation pack

9. Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).

E70364–01 is also supplied with a CPT-S transom transducer and associated fittings.

E70364–02 is also supplied with a DownVision™ CPT-100DVS transducer and associated fittings.

E70365–03 is also supplied with a RealVision™ 3D RV-100 transducer and associated fittings.


Axiom, Axiom+ 9 and 12

1. MFD

2. Trunnion bracket

3. Trunnion knobs x 2

4. Suncover

5. Panel mount gasket for surface/flush mounting

6. Rear mounting brackets:  a. supplied with 9” MFD b. supplied with 12” MFD

7. Documentation pack

8. Power / NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).

9. M5x58 Threaded studs x 4

10. M5 Thumb nuts x 4

E70367–02 is also supplied with a DownVision™ CPT-100DVS transducer and associated fittings.

E70367–03 is also supplied with a RealVision™ 3D RV-100 transducer and associated fittings.

E70369–03 is also supplied with a RealVision™ 3D RV-100 transducer and associated fittings.


Axiom, Axiom+ 7 trunnion mount dimensions

A = 250.4 mm (9.86 in)

B  = 162.5 mm (6.4 in)

C = 76.4 mm (3 in)

D • Straight connectors = 218 mm (8.58 in)

    • Right-angled connectors = 198 mm (7.79 in)


Axiom, Axiom+ 7 surface and flush mount dimensions Using adaptor bracket

A = 201.1 mm (7.92 in)

B = 133 mm (5.24 in)

C = 8 mm (0.32 in)

D = 93.1 mm (3.67 in)

E • Straight connectors = 218 mm (8.58 in)

     • Right-angled connectors = 198 mm (7.79 in)






Axiom, Axiom+ 7 surface and flush mount dimensions Using Rear mount kit

A = 201.1 mm (7.92 in)

B = 133 mm (5.24 in)

C = 8 mm (0.32 in)

D = 93.1 mm (3.67 in)

E • Straight connectors = 218 mm (8.58 in)

     • Right-angled connectors = 198 mm (7.79 in)

F = 73 mm ( 2.87 in)

G = 132 mm (5.2 in)


Axiom, Axiom+ 9 trunnion mount dimensions

A =  265.03 mm (10.43 in)

B = 187.81 (7.39 in)

C = 76.71 mm (3.02 in)

D = 65 mm (2.56 in)

E • Straight connectors = 178 mm (7.01 in)

    • Right-angled connectors = 158 mm (6.22 in)


Axiom, Axiom+ 9 surface and flush mount dimensions

A = 244.08 mm (9.64 in)

B = 157.78 mm (6.21 in)

C = 8 mm (0.31 in)

D = 100.8 mm (3.97 in)

E = 157 mm 6.18 in)

F • Straight connectors = 178 mm (7.01 in)

   • Right-angled connectors = 158 mm (6.22 in)


Axiom, Axiom+ 12 trunnion mount dimensions

A =  314 mm (12.36 in)

B = 226.72 mm (8.93 in)

C = 76.2 mm (3 in)

D = 65 mm (2.56 in)

E • Straight connectors = 178 mm (7.01 in)

    • Right-angled connectors = 158 mm (6.22 in)


Axiom, Axiom+ 12 surface and flush mount dimensions

A = 314 mm (12.36 in)

B = 226.72 mm (8.93 in)

C = 8 mm (0.31 in)

D = 79.3 mm (3.12 in)

E = 222 mm (8.74 in)

F • Straight connectors = 178 mm (7.01 in)

   • Right-angled connectors = 158 mm (6.22 in)

  TECHNICAL SPECIFICATIONS
MODEL       Axiom+ 7.  Axiom+ 9   Axiom+ 12



Display Size 7.0 inch High Density IPS 9.0 inch High Density IPS 12.1 inch High Density IPS
Display Resolution 1024 x 600 (WSVGA) 1280 x 720 (WXGA) 1280 x 800 (WXGA)
Display Type Multitouch with HydroTough™ rugged hydrophobic coating
Brightness 1,500 nits 1,500 nits 1,800 nits
Viewing Angle 85° Top, Bottom, Left, Right 85° Top, Bottom, Left, Right 88° Top, Bottom, Left, Right
Dimensions
W x H x D
210 x 142 x 77mm
7.92 x 5.24 x 3.0in
(Excluding trunnion and cables)
244 x 158 x 77mm
9.65 x 6.22 x 3.0in
(Excluding trunnion and cables)
314 x 217 x 77mm
12.36 x 8.54 x 3.0in
(Excluding trunnion and cables)
Weight 3 lbs 5 lbs 6.5 lbs
Mounting Options Surface, Flush, Trunnion, (Front installation bracket available)
Waterproof Rating IPX6 / IPX7
Operating Temperature Range -25°C to +55°C (-13°F to +131°F)
Storage Temperature Range -30°C to +70°C (-22°F to +158°F)



POWER

Voltage 12V DC (8V to 16V DC)
Power Consumption (Full brightness) 7.34 Watts. RV Sonar version 9.84 Watts 8.95 Watts. RV Sonar version 11.98 Watts 15.48 Watts. RV Sonar version 19.96 Watts



SENSORS

GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel
*Future software update required
Sonar Type (Built-in) RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D
Sonar Connections 25pin RealVision™ type connector
Sonar Depth High CHIRP Sonar = 900 feet (274m) | DownVision™ = 600 feet (183m) | SideVision™ = 300 feet (91m) | RealVision™ 3D = 300 feet (91m)
External Sonar Option Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet
Radar Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars
AIS Yes - NMEA2000 compatible
Autopilot Control Yes - Evolution Autopilot
Thermal Night Vision Yes FLIR AX8, M232, M300 Series, M400, M500
Video / Camera Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)
Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM - N. America Only
Audio NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio
Digital Switching Yes - Empirbus & C-Zone compatible
Remote Control Yes Optional RMK-10 (A80438)

NETWORKING

Ethernet 1 x 10/100 Mbit/s Network (RayNet)
NMEA0183 No
NMEA2000 NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter
SeaTalkNG Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box)
USB 1 x USB microAB
Wi-Fi WiFi - 802.11 a/b/g/n
BlueTooth Bluetooth v4.0

NAVIGATION

Cartography Lighthouse Charts, Navionics, and C-MAP compatible
Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts

MEMORY

Internal Memory 16 GB Solid State
External Memory 1x MicroSD Card Slot
Languages 24
Conformances NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210

OTHER

Languages 24
Conformances NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210
