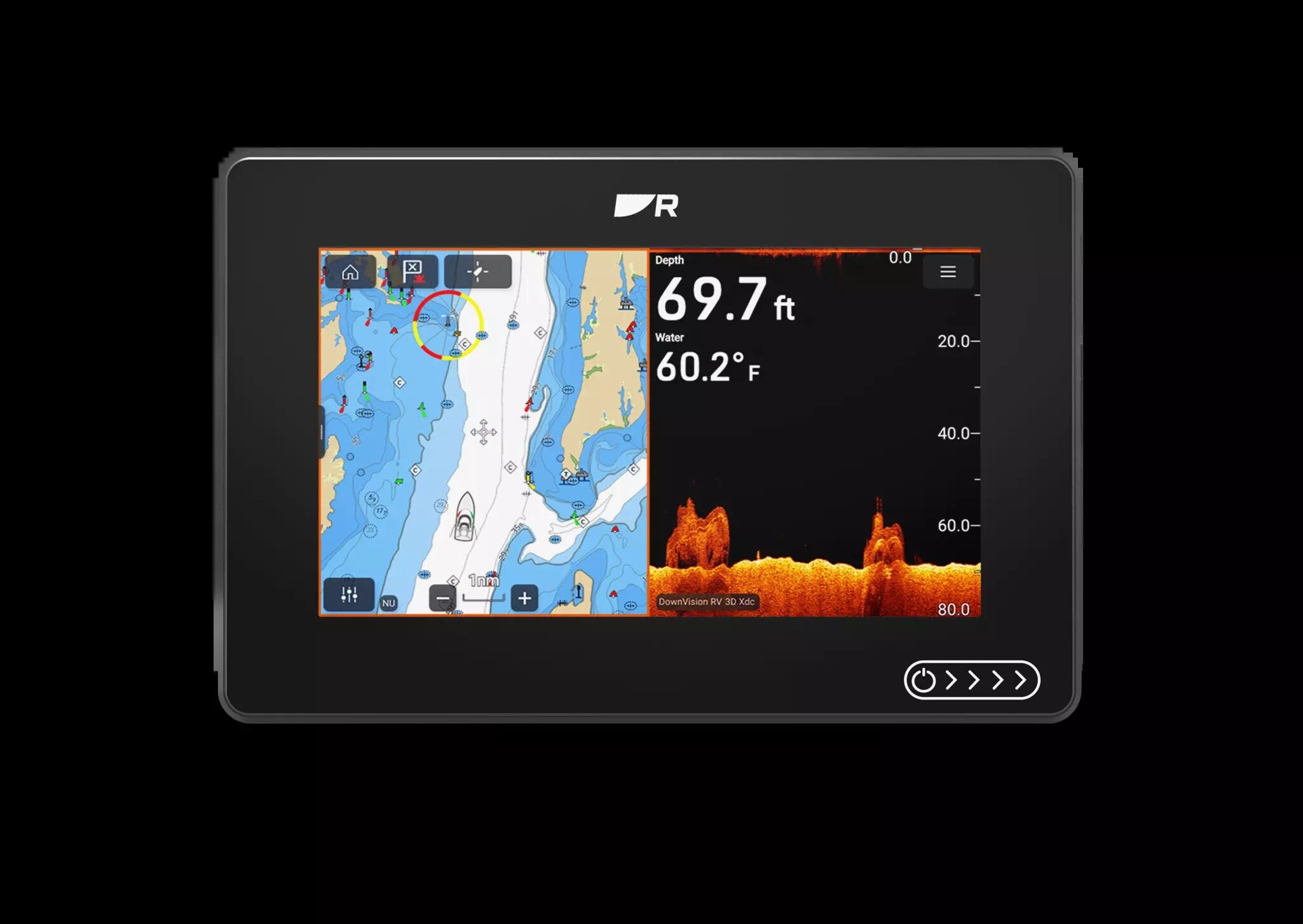

Raymarine Axiom 2 7 RV Chartplotter with RV-100 Transducer and Mediterranean LightHouse Chart
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Axiom 2 7 is the smallest display in Raymarine's latest Axiom range, built around a hexacore processor that boots faster and redraws charts noticeably more quickly than the Axiom+ generation it replaces. This is an RV model, so a 600W RealVision 3D sonar module is built in and one compatible transducer covers RealVision 3D, SideVision, DownVision and conical CHIRP without a separate black box.
The 7 inch IPS panel runs at 1024 x 600 with 1500 nits of brightness and a HydroTough oleophobic coating, so it stays readable in direct sun and sheds spray and fingerprints. LightHouse 4 opens up more than thirty apps alongside LightHouse Charts Gen 2, Navionics, C-MAP and Imray cartography, and the display can be trunnion, surface, flush or front mounted using the supplied and optional hardware.
Gigabit RayNet Ethernet ties the display into a wider Raymarine system of radars, cameras, extra sonar modules and further displays, while NMEA 2000, Wi-Fi and Bluetooth handle instruments, autopilots and wireless audio. RealVision transducers plug straight into the 25-pin socket; DownVision, CPT-S and traditional transducers connect through an adaptor cable.
The RV-100 plastic transom mount RealVision 3D transducer is supplied in the box, so no hull cutting is needed.
This version ships with LightHouse Mediterranean charts pre-loaded, ready to navigate out of the box.
PRODUCT DETAILS
- Supplied with pre-loaded LightHouse Mediterranean charts
- Hexacore (6-core) processor for faster start-up and up to 30% faster chart rendering
- 7 inch IPS touchscreen, 1024 x 600, 1500 nits, HydroTough oleophobic coating
- LightHouse 4 operating system with access to over 30 marine apps
- Built-in 600W RealVision 3D sonar: RealVision 3D, SideVision, DownVision and conical CHIRP
- RV-100 transom mount RealVision 3D transducer included
- 25-pin transducer connector; DownVision, CPT-S and traditional transducers fit via an adaptor cable
- Gigabit RayNet Ethernet (10/100/1,000 Mbits/s) for radar, cameras and networked displays
- 64 GB internal solid state storage plus a MicroSDXC card slot
- Built-in GNSS receiver with 10 Hz position updates (GPS, GLONASS, BeiDou)
- Wi-Fi 802.11 b/g/n and Bluetooth v4.0 for wireless audio and mobile app connection
- LightHouse Charts Gen 2, Navionics, C-MAP, Imray and S-63 chart compatibility
- IPx6 waterproof, rated for above or below decks installation
- Axiom 2 7 RV chartplotter (supplied with trunnion adaptor fitted)
- Trunnion mounting bracket
- Trunnion knobs x 2
- Suncover — trunnion mount
- Panel mount gasket for surface or flush mounting
- M3 x 5 screw, M3 spring washer and M3 crimp terminal (for optional grounding point connection)
- M5 x 58 threaded studs x 4
- M5 thumb nuts x 4
- DeviceNet to SeaTalk NG adaptor cable, 120 mm (4.7 in)
- Power / NMEA 2000 cable (1.5 m power connection and 0.5 m NMEA 2000 connection)
- Documentation pack
- RV-100 RealVision 3D transom mount transducer with cable and mounting hardware
- Pre-loaded LightHouse Mediterranean chart
