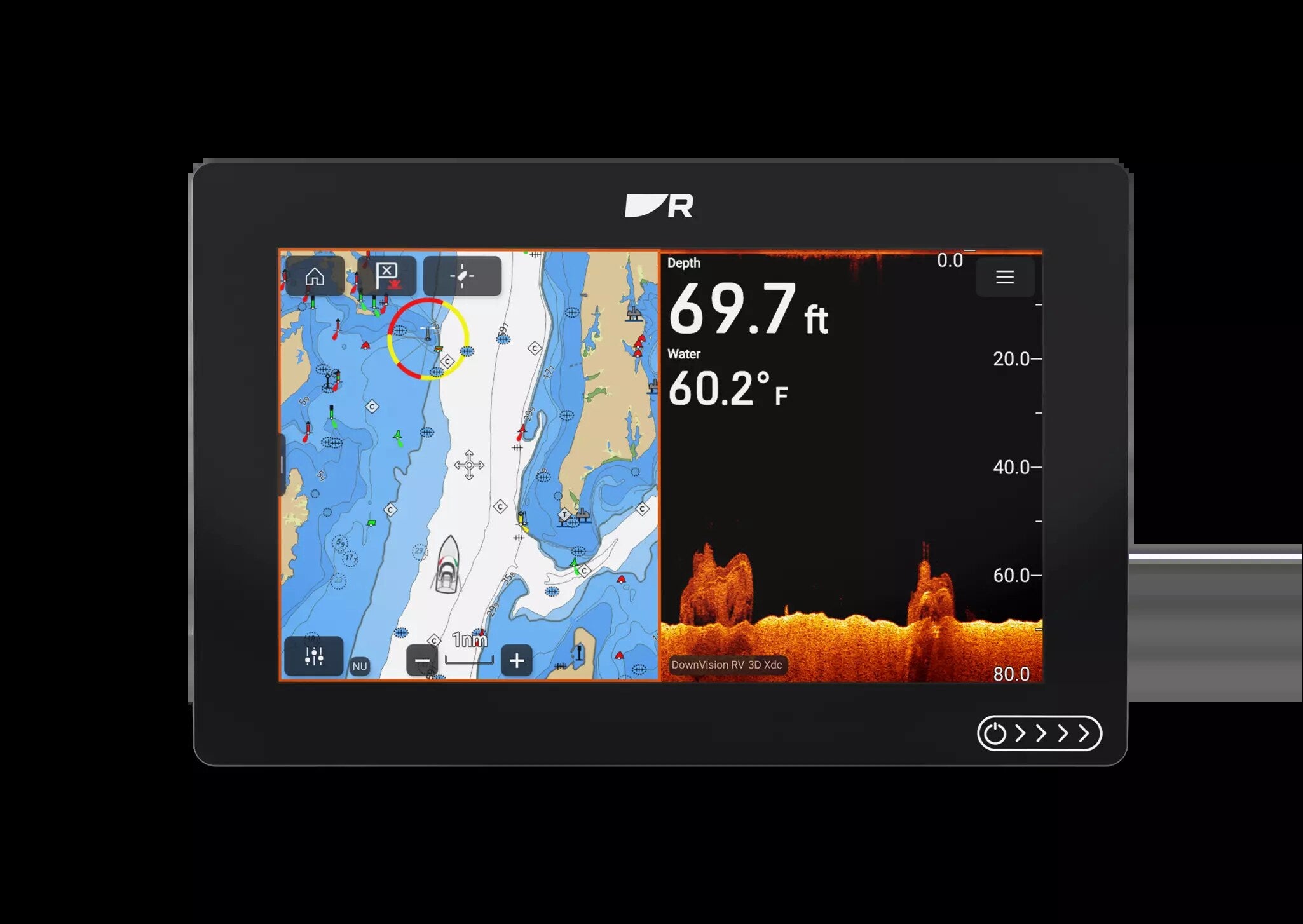

Raymarine Axiom 2 9 RV Chartplotter with RV-100 Transducer and Northern Europe LightHouse Chart
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Axiom 2 9 is the middle display in Raymarine's latest Axiom range, built around a hexacore processor that boots faster and redraws charts noticeably more quickly than the Axiom+ generation it replaces. This is an RV model, so a 600W RealVision 3D sonar module is built in and one compatible transducer covers RealVision 3D, SideVision, DownVision and conical CHIRP without a separate black box.
The 9 inch IPS panel runs at 1280 x 720 with 1500 nits of brightness and a HydroTough oleophobic coating, so it stays readable in direct sun and sheds spray and fingerprints. LightHouse 4 opens up more than thirty apps alongside LightHouse Charts Gen 2, Navionics, C-MAP and Imray cartography, and the display can be trunnion, surface, flush or front mounted using the supplied and optional hardware.
Gigabit RayNet Ethernet ties the display into a wider Raymarine system of radars, cameras, extra sonar modules and further displays, while NMEA 2000, Wi-Fi and Bluetooth handle instruments, autopilots and wireless audio. RealVision transducers plug straight into the 25-pin socket; DownVision, CPT-S and traditional transducers connect through an adaptor cable.
The RV-100 plastic transom mount RealVision 3D transducer is supplied in the box, so no hull cutting is needed.
This version ships with LightHouse Northern Europe charts pre-loaded, ready to navigate out of the box.
PRODUCT DETAILS
- Supplied with pre-loaded LightHouse Northern Europe charts
- Hexacore (6-core) processor for faster start-up and up to 30% faster chart rendering
- 9 inch IPS touchscreen, 1280 x 720, 1500 nits, HydroTough oleophobic coating
- LightHouse 4 operating system with access to over 30 marine apps
- Built-in 600W RealVision 3D sonar: RealVision 3D, SideVision, DownVision and conical CHIRP
- RV-100 transom mount RealVision 3D transducer included
- 25-pin transducer connector; DownVision, CPT-S and traditional transducers fit via an adaptor cable
- Gigabit RayNet Ethernet (10/100/1,000 Mbits/s) for radar, cameras and networked displays
- 64 GB internal solid state storage plus a MicroSDXC card slot
- Built-in GNSS receiver with 10 Hz position updates (GPS, GLONASS, BeiDou)
- Wi-Fi 802.11 b/g/n and Bluetooth v4.0 for wireless audio and mobile app connection
- LightHouse Charts Gen 2, Navionics, C-MAP, Imray and S-63 chart compatibility
- IPx6 waterproof, rated for above or below decks installation
- Axiom 2 9 RV chartplotter
- Trunnion mounting bracket
- Trunnion knobs x 2
- Suncover
- Panel mount gasket for surface or flush mounting
- Rear mounting brackets (9 inch)
- M3 x 5 screw, M3 spring washer and M3 crimp terminal (for optional grounding point connection)
- M5 x 58 threaded studs x 4
- M5 thumb nuts x 4
- DeviceNet to SeaTalk NG adaptor cable, 120 mm (4.7 in)
- Power / NMEA 2000 cable (1.5 m power connection and 0.5 m NMEA 2000 connection)
- Documentation pack
- RV-100 RealVision 3D transom mount transducer with cable and mounting hardware
- Pre-loaded LightHouse Northern Europe chart
No exploded diagram available for this product.
Raymarine RV-100 RealVision 3D Transom Mount Transducer
Raymarine RV-200 RealVision 3D Through Hull Transducer
Raymarine RV-212 RealVision 3D Through Hull Transducer
Raymarine RV-212P RealVision 3D Through Hull Transducer
Raymarine RV-212S RealVision 3D Through Hull Transducer
Raymarine RV-220 RealVision 3D Through Hull Transducer
Raymarine RV-220P RealVision 3D Through Hull Transducer
Raymarine RV-220S RealVision 3D Through Hull Transducer
Raymarine RV-300 RealVision 3D Through Hull Transducer
Raymarine RV-312 RealVision 3D Through Hull Transducer
Raymarine RV-312P RealVision 3D Through Hull Transducer
Raymarine RV-312S RealVision 3D Through Hull Transducer
Raymarine RV-320 RealVision 3D Through Hull Transducer
Raymarine RV-320P RealVision 3D Through Hull Transducer
Raymarine RV-320S RealVision 3D Through Hull Transducer
Raymarine RV-400 RealVision 3D Through Hull Transducer
Raymarine RV-412 RealVision 3D Through Hull Transducer
Raymarine RV-412P RealVision 3D Through Hull Transducer
Raymarine RV-412S RealVision 3D Through Hull Transducer
Raymarine RV-420 RealVision 3D Through Hull Transducer
Raymarine RV-420P RealVision 3D Through Hull Transducer
Raymarine RV-420S RealVision 3D Through Hull Transducer
Raymarine CPT-100DVS DownVision Transom Mount Transducer
Raymarine CPT-110 DownVision Through Hull Transducer
Raymarine CPT-120 DownVision Through Hull Transducer
Raymarine CPT-S Transom Mount Transducer
Raymarine CPT-S 0° Urethane Through Hull Transducer
Raymarine CPT-S 12° Urethane Through Hull Transducer
Raymarine CPT-S 20° Urethane Through Hull Transducer
Raymarine CPT-S 0° Bronze Through Hull Transducer
Raymarine CPT-S 12° Bronze Through Hull Transducer
Raymarine CPT-S 20° Bronze Through Hull Transducer
Raymarine CPT-S In-Hull Transducer
Raymarine Metal Trunnion Mounting Kit for Axiom 9
Raymarine Suncover for Axiom 9 (Trunnion or Surface Mounted)
Raymarine Rear Mounting Kit for Axiom 9 (inc. Rear Brackets, Bolts and Thumbnuts)
Raymarine Axiom Power Cable 1.5m Straight with NMEA 2000 Connector
Raymarine Axiom Power Cable 1.5m Right-Angled with NMEA 2000 Connector
Raymarine Front Mounting Kit for Axiom 9
Raymarine Suncover for Axiom 9 (Front Mounting Kit)
Raymarine RCR Remote SD Card Reader and USB Socket
Raymarine Adapter Plate for Axiom 9 to fit a9 Size Cutout
Raymarine Adapter Plate for Axiom 9 to fit C80/E80 Size Cutout
Raymarine Adapter Plate for Axiom 9 to fit C70 Size Cutout
Image coming soonRAYMARINE 10 M Right Angle RayNet To RayNet Cable
Raymarine Quantum 2 Q24D Wireless CHIRP Radar no Cables
Raymarine Quantum 2 Q24D Wireless CHIRP Radar with 10m Power and Data Cables
Raymarine Cyclone Radar Pedestal 55 Watts
Raymarine Cyclone Pro Radar Pedestal 110 Watts
Raymarine Cyclone 55 Watts 3ft Open Array Radar with 15m Cables
Raymarine Evolution EV-100 Wheel Autopilot Pack
Raymarine Evolution EV-100 Tiller Autopilot Pack
Raymarine Evolution EV-150 Power Autopilot Pack (No Drive)
Raymarine Evolution EV-200 Power Autopilot Pack with Type 1 Hydraulic Pump
Raymarine p70s Autopilot Control Head
Raymarine p70Rs Autopilot Control Head
Raymarine CAM300 Eyeball CCTV Day and Night Video Camera
Raymarine AR200 ClearCruise Augmented Reality GPS and Heading Sensor
Raymarine FLIR M300C Pan and Tilt Visible Light IP Camera
Raymarine AIS700 Class B Transceiver With Integrated Splitter
Raymarine Ray73 VHF Radio Integrated GPS and AIS
Raymarine i70s Multifunction Instrument Display
RNS-5 Gigabit Raynet Network Switch
Yachtsense Link Marine Cloud Router
Raymarine YachtSense Master Unit (12v or 24v) with 2 x J1939, 2 x RS485, Ethernet & STNG inputs
Raymarine LightHouse Chart (preloaded with UK & Ireland charts) on 32Gb micro SD card
RAYMARINE LIGHTHOUSE CHART (PRELOADED WITH WESTERN EUROPE CHARTS) ON 32GB MICRO SD CARD
Raymarine LightHouse Chart (preloaded with Northern Europe charts) on 32Gb micro SD card
Raymarine Lighthouse Chart: R70794-MED - Mediterranean - SD-Card
Display
| Screen size (diagonal) | 9.0" |
| Display type | IPS (In-Plane Switching) |
| Resolution | 1280 x 720 (HD) |
| Aspect ratio | 16:9 |
| Colour depth | 24-bit |
| Brightness | 1500 nits / 1500 cd/m2 |
| Protective coating | HydroTough (oleophobic) |
| Viewing angle | Top 85° / Bottom 85° / Left 85° / Right 85° |
| Simultaneous touches | 2 |
Power
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 8 V dc to 16 V dc |
| Power consumption (typical) | 19.92 Watts |
| Fuse requirements | Inline fuse 7 A, or thermal breaker 7 A |
Environmental
| Operating temperature range | -25 °C (-13 °F) to +55 °C (131 °F) |
| Storage temperature range | -30 °C (-22 °F) to +70 °C (158 °F) |
| Humidity | Up to 93% @ 40 °C (104 °F) |
| Water ingress protection | IPx6 |
| Installation location | Above or below decks |
Physical
| Width (trunnion mounted) | 265.03 mm (10.43 in) |
| Height (trunnion mounted) | 187.81 mm (7.39 in) |
| Depth (including straight transducer connector cable) | 178 mm (7.01 in) |
| Width (surface / flush mounted) | 244.08 mm (9.61 in) |
| Height (surface / flush mounted) | 157.78 mm (6.21 in) |
Connections
| Ethernet | 1 x RayNet (10/100/1,000 Mbits/s) |
| NMEA 2000 | 1 x DeviceNet male connector built into the power cable (Load Equivalency Number = 1); SeaTalk NG via the supplied adaptor cable |
| NMEA 0183 | NMEA 0183 to NMEA 2000 converter required (part number A80721) |
| Transducer | 1 x 25-pin RealVision type connector |
| Accessory | 1 x USB Micro B (for optional Remote Card Reader) |
| Wi-Fi | 1 x 802.11 b/g/n |
| Bluetooth | 1 x Bluetooth v4.0 |
| Internal storage | 64 GB solid state |
| External storage | 1 x MicroSDXC card slot; SD card and USB-A via RCR-SDUSB (A80440); 2 x MicroSDHC via RCR-2 |
Sonar
| Sonar channels | RealVision 3D (70 W / 350 kHz ±5%), SideVision (70 W / 350 kHz ±5%), DownVision (35 W / 350 kHz ±5%), conical CHIRP High (100 W / 200 kHz ±5%) |
| Sensors | Temperature sensor; AHRS (Attitude and Heading Reference System) sensor |
| Compatible transducers | RealVision 3D direct; DownVision and CPT-S-Series via adaptor cable A80490; traditional non-CHIRP via adaptor cable A80489 |
GNSS receiver
| Antenna | Internal ceramic chip antenna mounted near the top of the unit |
| GNSS compatibility | GPS, GLONASS, BeiDou |
| SBAS compatibility | EGNOS, GAGAN, MSAS, QZSS, WAAS |
| Receiver sensitivity | 165 dBm (tracking), 160 dBm (acquisition), 148 dBm (cold start) |
| Operating frequency | 1574 MHz to 1605 MHz |
| Position accuracy | Without SBAS <= 15 m; with SBAS <= 5 m (95% of the time) |
| Refresh rate | 10 Hz (position updates 10 times per second) |
| Cold start (Time To First Fix) | Under 2 minutes |
| Geodetic datum | WGS-84 (alternatives can be selected on the chartplotter) |
Mounting
| Mounting options | Trunnion, surface, flush or front mounting (front installation kit required for front mounting) |
| Mounting template | 87296 (Axiom 2 9" surface / flush mounting template) |
| Trunnion bracket fixings | 5 x self-tapping screws (not supplied) for 5.75 mm (0.23 in) mounting holes |
System
| Processor | Hexacore (6-core) |
| Operating system | LightHouse 4 |
| Minimum LightHouse software version | LightHouse 4 v4.11.103 |
| Chart compatibility | LightHouse Charts Gen 2, Navionics, C-MAP, Imray and more |
| Sonar | Built-in RealVision 3D sonar module |
| Supplied chart | LightHouse Northern Europe chart pre-loaded |
Navigation
| Waypoints | Up to 10,000 waypoints in up to 200 groups |
| Routes | Up to 250 routes of up to 500 waypoints each |
| Tracks | Up to 15 tracks of up to 10,000 points each |
