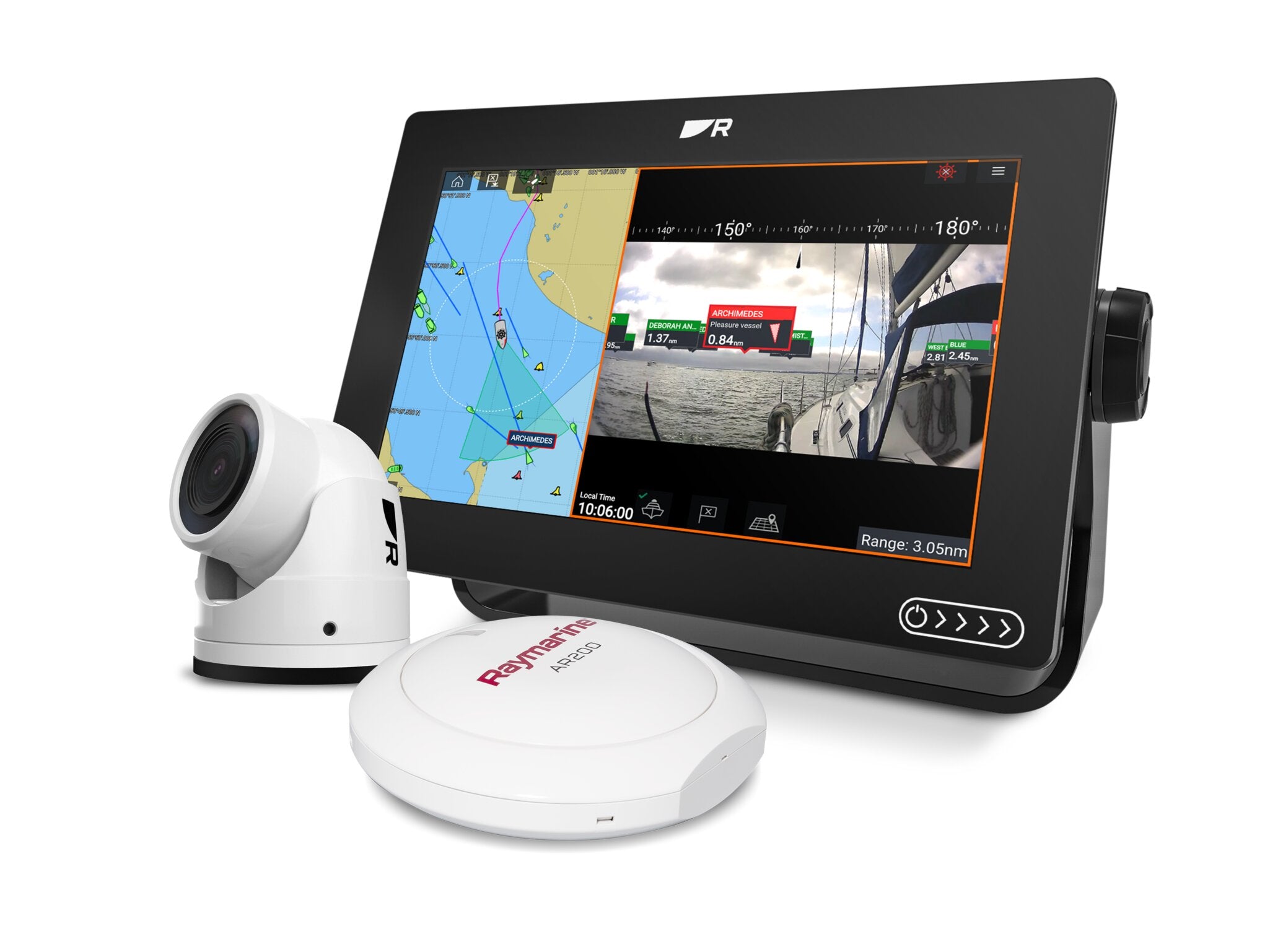

Raymarine Axiom display showing ClearCruise augmented reality overlays with the CAM400 White camera and AR200 sensor

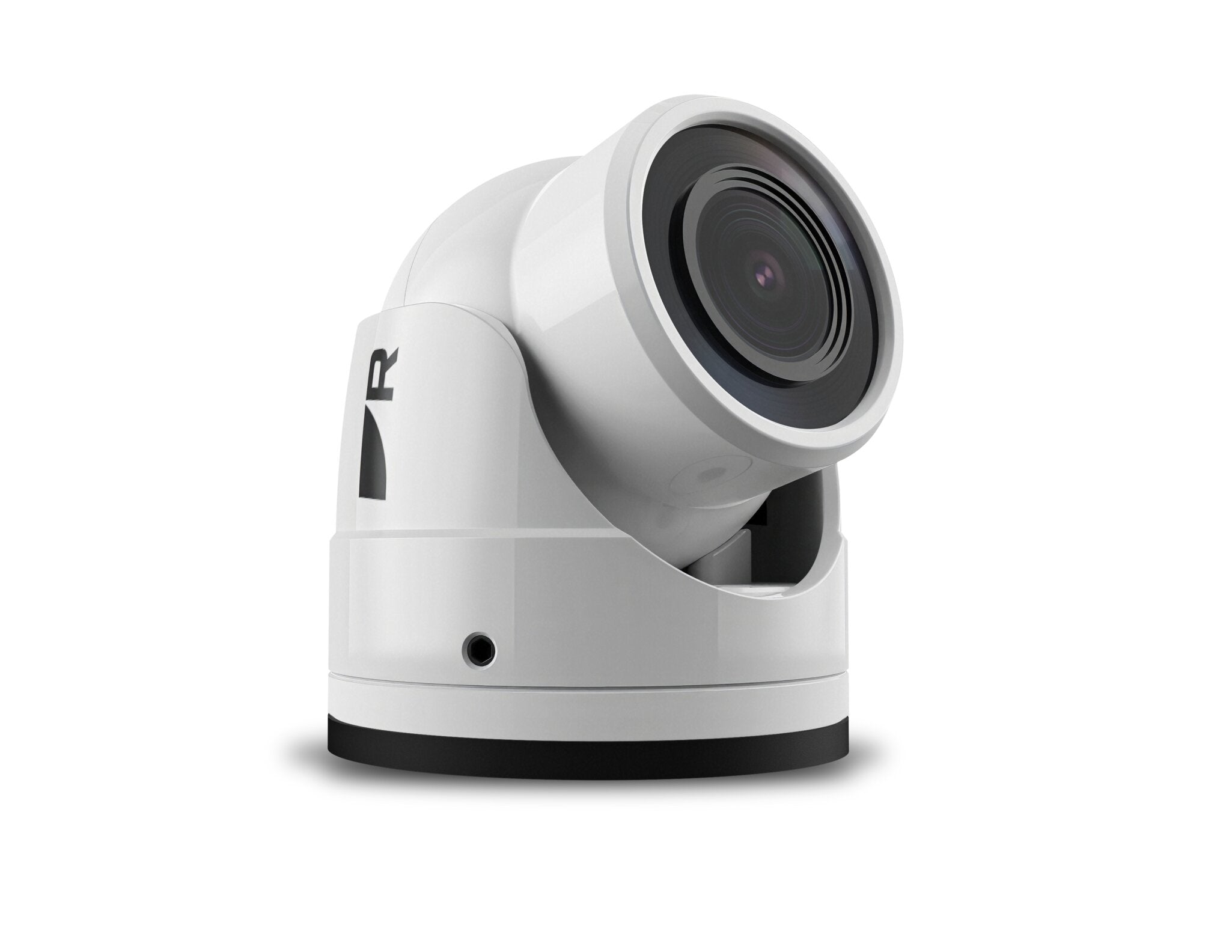

Raymarine CAM400 White HD day and night IP camera included in the AR pack

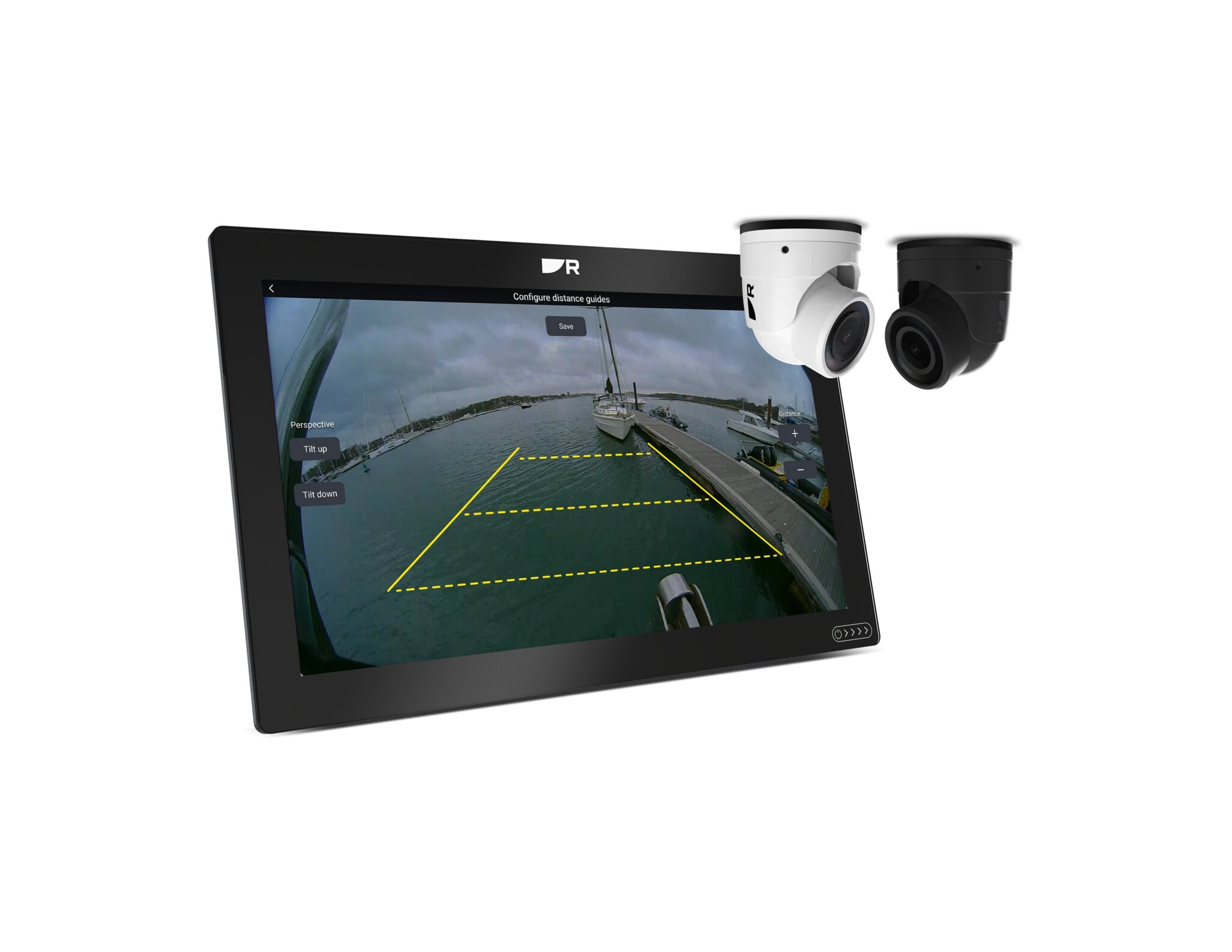

Raymarine Axiom display showing CAM400 video with on-screen distance guidelines for docking

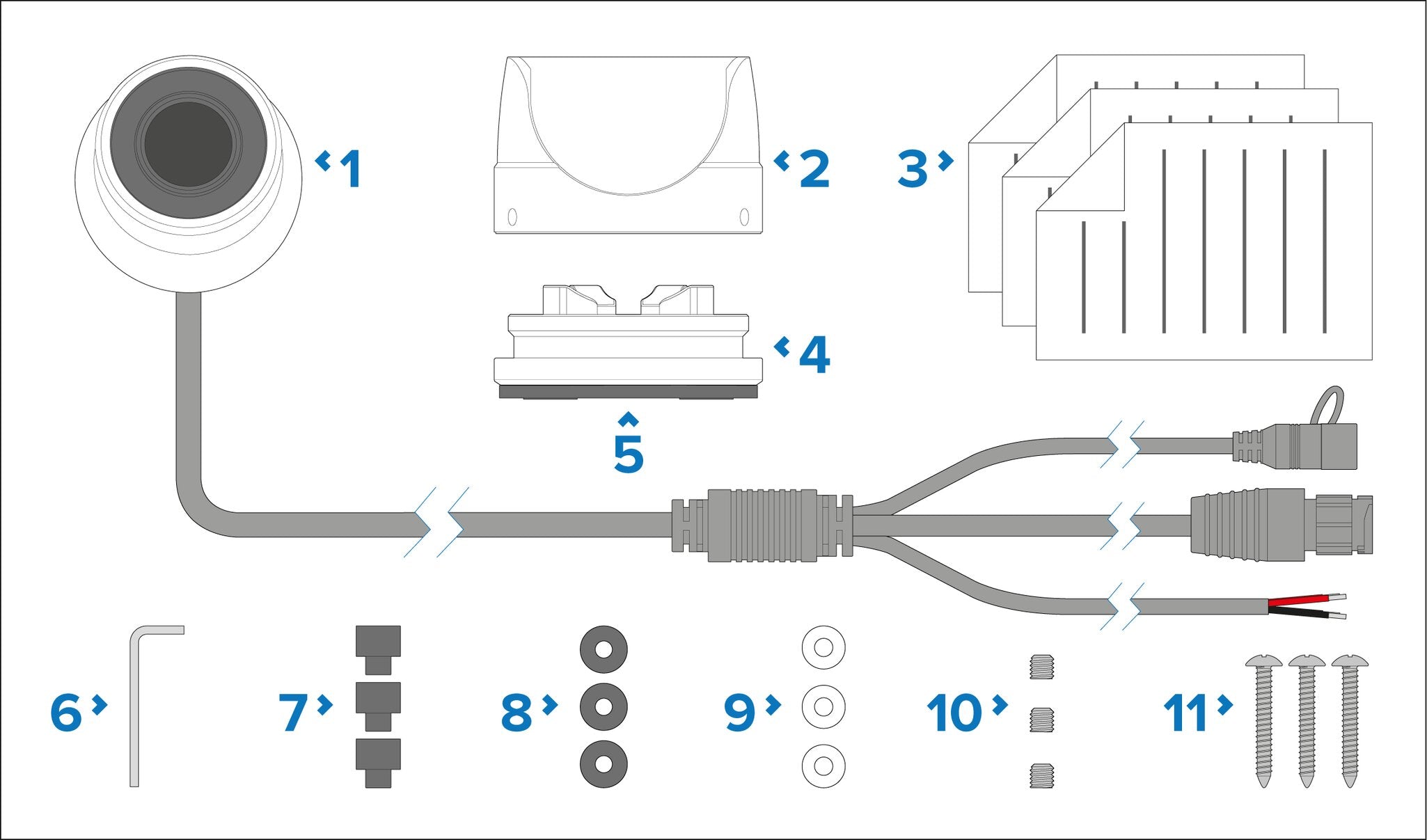

Raymarine CAM400 camera parts supplied: camera, collar, base, gasket, hex wrench, plugs, washers, grub screws and mounting screws

Raymarine

Raymarine CAM400 ClearCruise Augmented Reality Pack with AR200 Sensor, White

Name: Raymarine CAM400 ClearCruise Augmented Reality Pack with AR200 Sensor, White
Brand: Raymarine
SKU: T70603
Price: 1142.66 GBP
Availability: InStock

£1,142.66

Tax included. Shipping calculated at checkout.

T70603

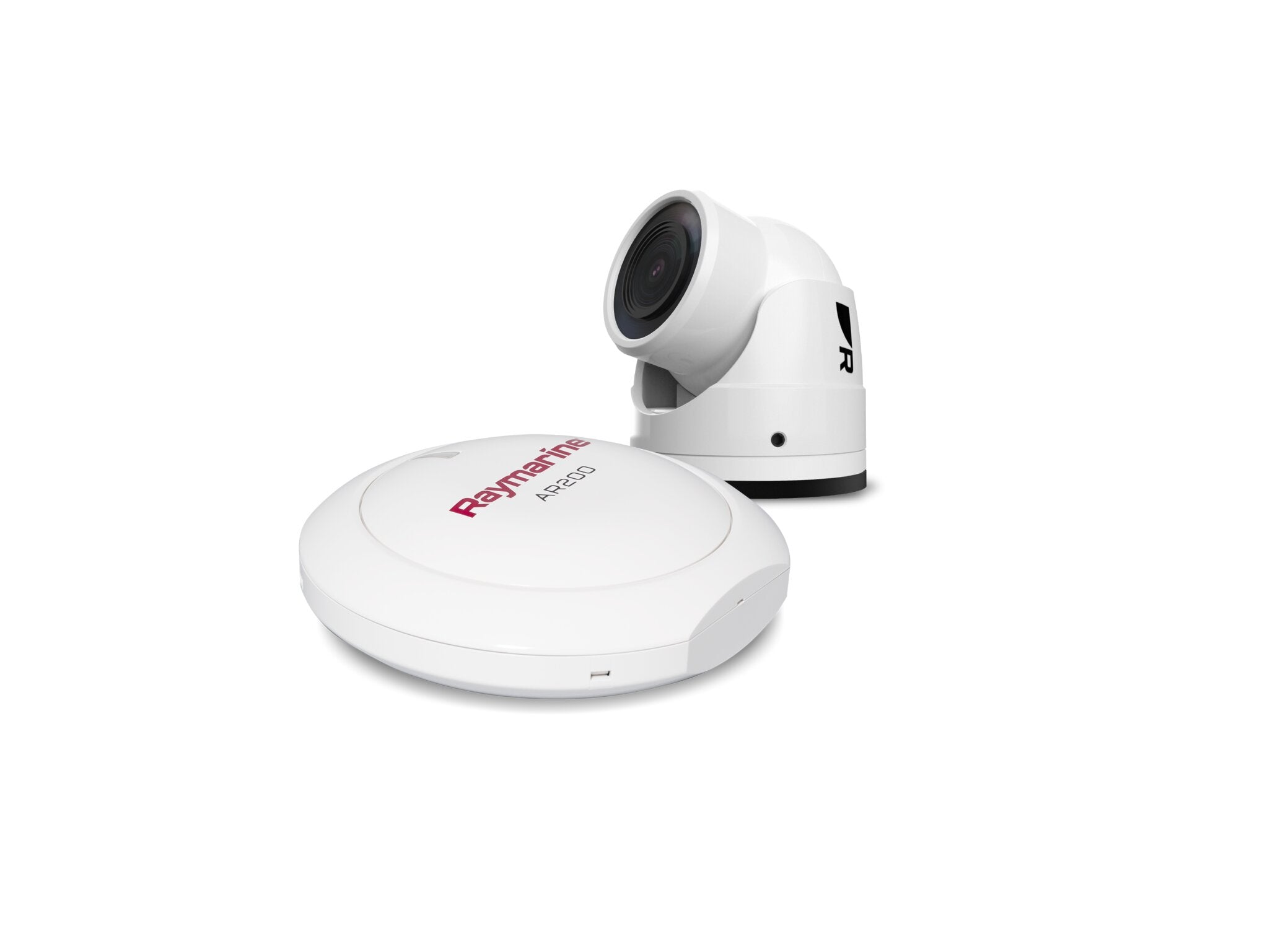

The CAM400 Augmented Reality Pack bundles Raymarine's compact HD CAM400 day and night IP camera in gloss marine white with the AR200 GPS and heading sensor. Together they unlock ClearCruise augmented reality on a compatible Axiom display, overlaying AIS targets, waypoints and chart objects onto live video. Network cables are included.

Quantity

✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Raymarine CAM400 Augmented Reality Pack brings ClearCruise AR to Axiom chartplotters in one box. It pairs the CAM400 HD day and night IP camera, finished in gloss marine white, with the AR200 sensor, which supplies GPS position, heading and motion data so the display can overlay AIS targets, waypoints, navigation aids and chart objects directly onto the live camera image.

The CAM400 delivers 1920 x 1080 video through a 129.4° wide-angle lens, with true day/night operation and 850 nm infrared illumination up to 10 m. It is rated IPx6 and IPx7, mounts ball-up or ball-down and runs on Power over Ethernet or 12 V dc. The pack also includes a 10 m RayNet cable to connect the camera to your network, plus a SeaTalk NG T-piece and 1 m backbone cable for the AR200.

AR needs the CAM400 and Axiom display on the same RayNet network and the AR200 on the same SeaTalk NG network, with LightHouse 4 or LightHouse 5 v4.11.133 or later on the display, and is viewed in the chartplotter Video app. Axiom 2 displays running LightHouse 5 add adjustable distance guidelines for docking. If you would like a hand checking your system, our team is happy to advise.

PRODUCT DETAILS

Brings ClearCruise Augmented Reality to Raymarine Axiom displays
Includes the CAM400 HD day and night IP camera (white, E70716)
Includes the AR200 GPS and AHRS heading sensor (E70537)
Overlays AIS targets, waypoints and chart objects on live video
1080p video with a 129.4 degree horizontal field of view and 10 m infrared
10 m RayNet cable, SeaTalk NG T-piece and 1 m backbone cable included
Power over Ethernet or direct 12 V dc camera power

CAM400 camera ball with fitted cable (RayNet male connector, factory reset switch and 12 V dc power wires)
Camera collar
Camera base
Mounting gasket (pre-fitted to the camera base)
2 mm hex wrench
3 x rubber plugs
3 x silicone washers
3 x plastic washers
3 x grub screws
3 x M4 x 30 mm self-tapping mounting screws
Documentation pack
AR200 augmented reality sensor
SeaTalk NG T-piece connector
1 m SeaTalk NG backbone cable
10 m RayNet (female) to RayNet (female) cable

No exploded diagram available for this product.

No compatible transducers listed for this product.

PoE Injector 12-24V DC 5Gb

Raymarine RNS8 - RayNet 8 Port Gigabit Network Switch with 4 POE Ports

RNS-5 Gigabit Raynet Network Switch

Raymarine RayNet Female to RJ45 Male Cable 1m

Raymarine RayNet Female to RJ45 Male Cable 3m

Raymarine RayNet Female to RJ45 Male Cable 10m

Image coming soon

Raynet(F) To RJ45(M) Cable 15m

Raymarine RayNet Female to RayNet Female Cable 400mm

Raymarine RayNet Female to RayNet Female Cable 2m

Raymarine RayNet Female to RayNet Female Cable 5m

Raymarine RayNet Female to RayNet Female Cable 20m

Image coming soon

M300 Cable Raynet RA to STR 3M

Raymarine Right Angled Raynet to Raynet 10m Cable

Raymarine RayNet Male to RayNet Female Right Angle Adaptor

Raymarine RayNet Male to RayNet Male Adaptor Cable 100mm

Raymarine RayNet Cable Puller 5 pk

Raymarine Axiom 12 RV, 12 inch Multifunction Display

Raymarine Axiom 12, 12 inch Multifunction Display

Raymarine Axiom 2 12 Chartplotter

Raymarine Axiom 2 12 RV Chartplotter

Raymarine Axiom 2 7 Chartplotter

Raymarine Axiom 2 7 RV Chartplotter

Raymarine Axiom 2 9 Chartplotter

Raymarine Axiom 2 9 RV Chartplotter

Raymarine Axiom 2 Pro 12 RVM

Raymarine Axiom 2 Pro 12 S

Raymarine Axiom 2 Pro 16 RVM

Raymarine Axiom 2 Pro 16 S

Raymarine Axiom 2 Pro 9 RVM

Raymarine Axiom 2 Pro 9 S

Raymarine Axiom 2 XL 16 Chartplotter

Raymarine Axiom 2 XL 16 Chartplotter Kit

Raymarine Axiom 2 XL 19 Chartplotter

Raymarine Axiom 2 XL 19 Chartplotter Kit

Raymarine Axiom 2 XL 22 Chartplotter

Raymarine Axiom 2 XL 22 Chartplotter Kit

Raymarine Axiom 2 XL 24 Chartplotter

Raymarine Axiom 2 XL 24 Chartplotter Kit

Raymarine Axiom 7 DV, 7 inch Multifunction Display

Raymarine Axiom 7 RV, 7 inch Multifunction Display

Raymarine Axiom 7, 7 inch Multifunction Display

Raymarine Axiom 9 RV, 9 inch Multifunction Display

Raymarine Axiom 9, 9 inch Multifunction Display

Raymarine Axiom Pro 12 RVX Multifunction Display with RealVision 3D and 1kW CHIRP Sonar

Raymarine Axiom Pro 12 S Multifunction Display with CHIRP Sonar

Raymarine Axiom Pro 16 RVX Multifunction Display with RealVision 3D and 1kW CHIRP Sonar

Raymarine Axiom Pro 16 S Multifunction Display with CHIRP Sonar

Raymarine Axiom Pro 9 RVX Multifunction Display with RealVision 3D and 1kW CHIRP Sonar

Raymarine Axiom Pro 9 S Multifunction Display with CHIRP Sonar

Raymarine Axiom XL 16 Glass Bridge Multifunction Display

Raymarine Axiom XL 19 Glass Bridge Multifunction Display

Raymarine Axiom XL 22 Glass Bridge Multifunction Display

Raymarine Axiom XL 24 Glass Bridge Multifunction Display

Raymarine Axiom+ 12 RV, 12 inch Multifunction Display

Raymarine Axiom+ 12, 12 inch Multifunction Display

Raymarine Axiom+ 7 RV, 7 inch Multifunction Display

Raymarine Axiom+ 7, 7 inch Multifunction Display

Raymarine Axiom+ 9 RV, 9 inch Multifunction Display

Raymarine Axiom+ 9, 9 inch Multifunction Display

Pack Contents

Camera	CAM400 HD day and night IP camera, white (E70716)
Sensor	AR200 ClearCruise augmented reality GPS and heading sensor (E70537)
Cables and connectors	10 m RayNet (female) to RayNet (female) cable; SeaTalk NG T-piece; 1 m SeaTalk NG backbone cable

AR requirements

Network	CAM400 and Axiom on the same RayNet (Ethernet) network; AR200 on the same SeaTalk NG network as the Axiom
Software	LightHouse 4 or LightHouse 5 v4.11.133 or later
Viewing	ClearCruise AR is shown in the chartplotter Video app (not the camera web interface)

AR200 sensor

AHRS sensors	3-axis digital accelerometer, 3-axis digital compass, 3-axis MEMS gyro
Compass accuracy	Static ≤1° RMS; dynamic ≤3° RMS
Pitch, roll and yaw accuracy	≤1°
Update rate	10 Hz
Power	12 V dc from SeaTalk NG, 50 mA maximum
Dimensions	108.48 mm wide x 26.61 mm high
Weight	129 g (4.55 oz)
Waterproof rating	IPx6, IPx7

Camera

Sensor	1/2.8" CMOS, progressive scan
Total pixels	1920 (H) x 1080 (V), 2.07 megapixels
Lens	2.58 mm fixed wide-angle
Field of view	129.4° horizontal / 69.9° vertical / 153.6° diagonal
Day / night	True day/night with mechanical IR cut filter
Illumination	850 nm infrared, up to 10 m (32.8 ft) range
Image mirroring	Horizontal and vertical flip, for ball-up or ball-down mounting

Video

Compression	H.264 / MJPEG
Maximum resolution	1920 x 1080
Streams	Triple stream: Stream 1 H.264/MJPEG, Stream 2 H.264/MJPEG, Stream 3 MJPEG
Frame rate	Up to 30 fps (adjustable 1-30 fps)
Bit rate	VBR 256 Kbit/s to 12.3 Mbit/s; CBR 32 Kbit/s to 12.3 Mbit/s
ONVIF	Profile S

Power

Nominal supply voltage	12 V dc
Operating voltage range	10.8 V dc to 15.6 V dc
Power consumption	2.1 W nominal @ 12 V dc / 5 W maximum (LEDs on)
Current	< 420 mA maximum @ 12 V dc
Power over Ethernet	IEEE 802.3af (Type 1) Class 2, 6.49 W max
Inline fuse / thermal breaker	2 A / 3 A

Connectivity

Network connection

Fitted cable with RayNet (male) connector, factory reset switch and 12 V dc power wires

Physical

Finish	Gloss marine white
Height	80.80 mm (3.18 in) including base
Width	64.50 mm (2.54 in)
Depth	70.48 mm (2.77 in) including lens
Weight	420 g (0.926 lb)
Mounting	Ball-up or ball-down, surface mount with 3 x M4 screws, 25 mm cable hole

Environmental

Waterproof rating	IPx6 and IPx7
Operating temperature	-20 °C to +60 °C (-4 °F to 140 °F)
Storage temperature	-30 °C to +70 °C (-22 °F to 158 °F)
Relative humidity	Up to 95% @ 60 °C (140 °F)

Conformance

Standards	EN 60945:2002 (exposed), EN IEC 60529 IPx6 & IPx7, EMC Directive 2014/30/EU, UK EMC Regulations 2016, RoHS 2011/65/EU
Product markings	UKCA, CE, RCM, WEEE

Compatibility

Raymarine displays	Axiom 2 Pro, Axiom 2 XL, Axiom 2, Axiom, Axiom+, Axiom Pro and Axiom XL running LightHouse v4.11.133 or later
Distance guidelines	Axiom 2-series chartplotters running LightHouse 5 v5.0.126 or later
ClearCruise AR	Requires an AR200 sensor (E70537) and a compatible Axiom display
Older displays	Previous-generation Raymarine displays are not supported
Multiple cameras	Up to 4 CAM400 streams on one display; one camera viewable on up to 10 displays

What is included in the AR pack?

The pack includes the CAM400 camera with its mounting kit, the AR200 sensor, a SeaTalk NG T-piece, a 1 m SeaTalk NG backbone cable and a 10 m RayNet (female) to RayNet (female) cable to connect the camera to your network.

Which displays work with the CAM400?

Raymarine Axiom 2 Pro, Axiom 2 XL, Axiom 2 and the original Axiom, Axiom+, Axiom Pro and Axiom XL displays, running LightHouse software v4.11.133 or later. Previous-generation Raymarine displays are not supported. It is also ONVIF Profile S compatible for third-party viewers.

Do I need any other cables?

The pack includes a 10 m RayNet (female) to RayNet (female) cable for the camera and a SeaTalk NG T-piece and 1 m backbone cable for the AR200. If your network uses RJ45, a RayNet (female) to RJ45 (male) adapter cable is needed instead; longer runs need a longer RayNet cable.

Can it be mounted upside down?

Yes. The CAM400 can be installed ball-up or ball-down, and the image can be flipped horizontally and vertically to suit.

How many cameras can I view?

Up to four CAM400 streams can be shown on one chartplotter, and a single camera can be viewed on up to ten networked displays.

Does it show distance guidelines for docking?

Yes, on Axiom 2-series chartplotters running LightHouse 5 v5.0.126 or later. Line spacing and angle can be adjusted to match your installation.

How well does it see at night?

Integrated 850 nm infrared illumination gives visibility up to 10 m (33 ft) in darkness, and true day/night operation with a mechanical IR cut filter switches automatically as light levels change.

How much storage does recording use?

Raymarine quotes approximately 7.1 MB per minute at 1080p, or about 140 minutes per GB.

Can it display augmented reality?

Yes. Pair the CAM400 with an AR200 sensor (E70537) on the same network as a compatible Axiom display to unlock ClearCruise Augmented Reality, which overlays AIS targets, waypoints and chart objects on the live video. AR is viewed in the chartplotter Video app.
