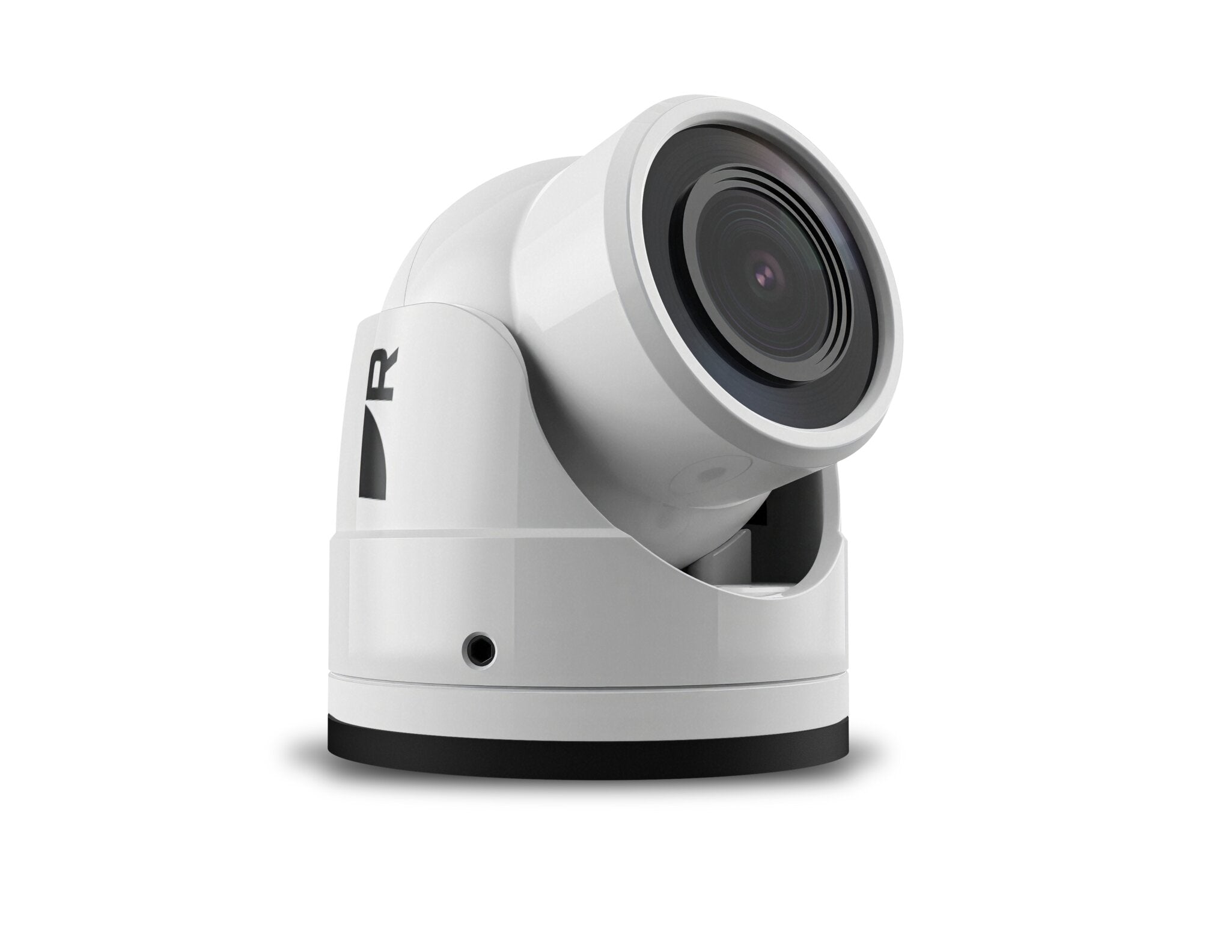

Raymarine CAM400 HD Day and Night IP Marine Camera, White
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Raymarine CAM400 is a compact, rugged day and night IP camera built for Axiom chartplotters. Its 1/2.8" CMOS sensor delivers 1920 x 1080 video through a 2.58 mm wide-angle lens with a 129.4° horizontal field of view, so you can watch blind spots, keep an eye on the cockpit or check on the engine room from the helm. True day/night operation with a mechanical IR cut filter and integrated 850 nm infrared illumination keep the picture useful up to 10 m away in darkness.

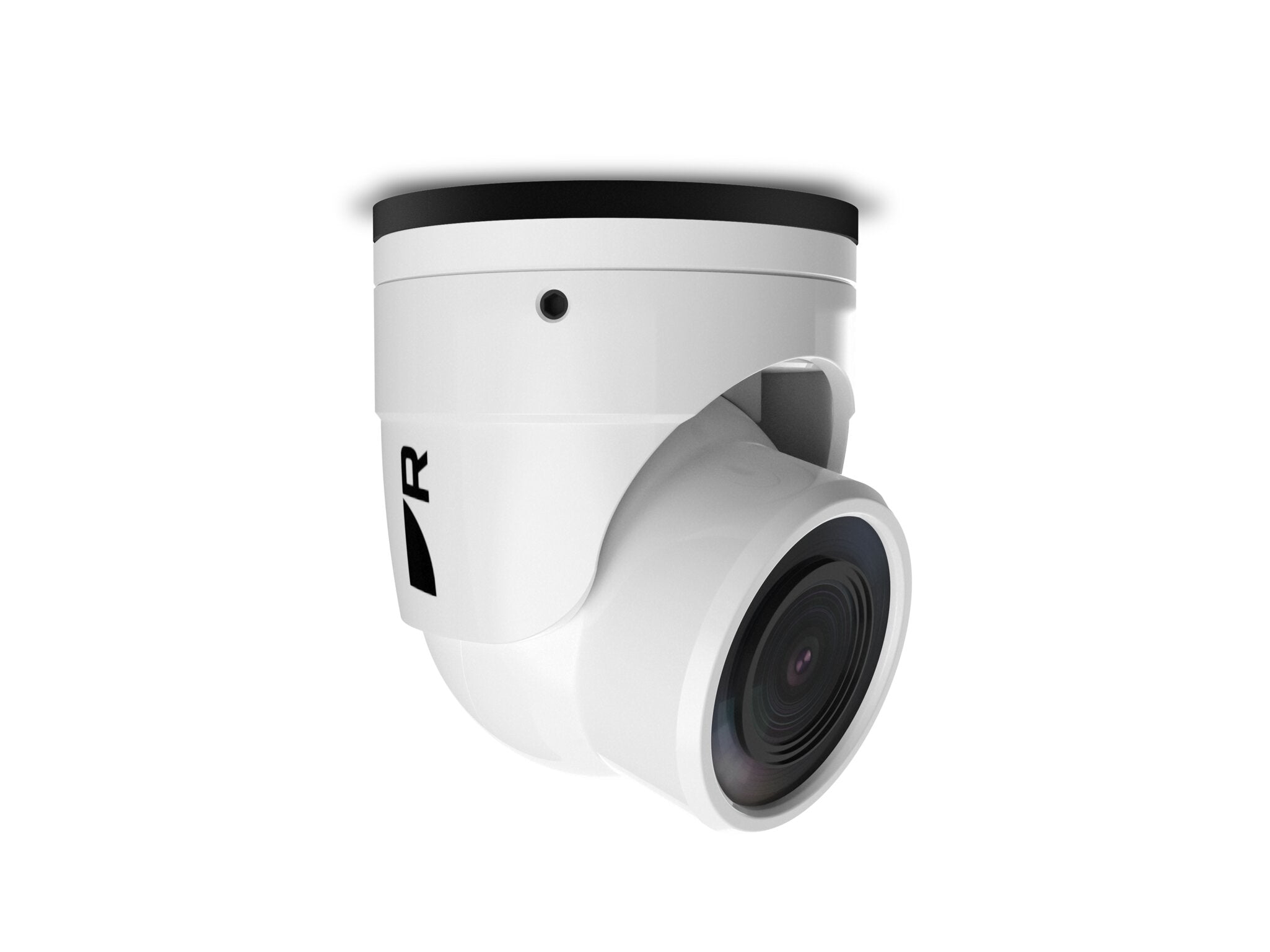

This version is finished in gloss marine white. It is rated IPx6 and IPx7, works from -20 °C to +60 °C and can be installed above or below deck, ball-up or ball-down, with the image flipped to suit. A single fitted cable carries a RayNet connection and a 12 V power breakout, so the camera can run on Power over Ethernet (802.3af Class 2) or direct 12 V dc. You will need a RayNet or RayNet to RJ45 cable to connect it.
The CAM400 works with Axiom 2 Pro, Axiom 2 XL, Axiom 2 and the original Axiom, Axiom+, Axiom Pro and Axiom XL displays on LightHouse v4.11.133 or later, and up to four cameras can be shown on one screen. On Axiom 2 displays running LightHouse 5 it can add adjustable distance guidelines for close-quarters manoeuvring, and adding an AR200 sensor unlocks ClearCruise Augmented Reality. If you would like help planning a camera system, our team is happy to advise.
PRODUCT DETAILS
- Compact HD day and night IP camera for Raymarine Axiom chartplotters
- 1/2.8 inch CMOS sensor with 1920 x 1080 (2.07 MP) video
- 2.58 mm wide-angle lens with a 129.4 degree horizontal field of view
- True day/night with mechanical IR cut filter and 850 nm infrared up to 10 m
- Power over Ethernet (802.3af Class 2) or direct 12 V dc power

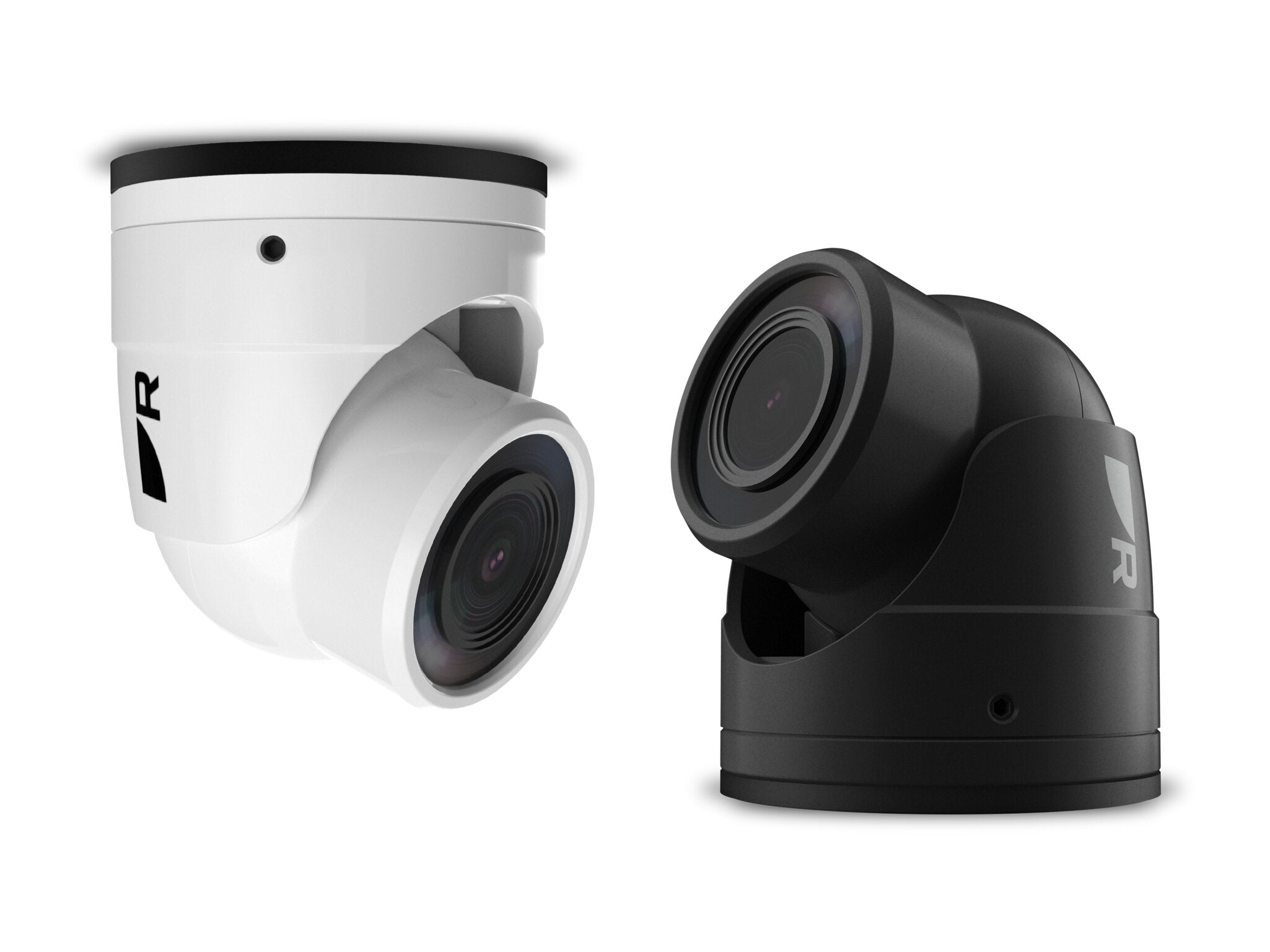

- Ball-up or ball-down mounting with horizontal and vertical image flip
- Distance guidelines on Axiom 2 with LightHouse 5
- ClearCruise AR ready with the AR200 sensor
- IPx6 / IPx7 rated, gloss marine white finish

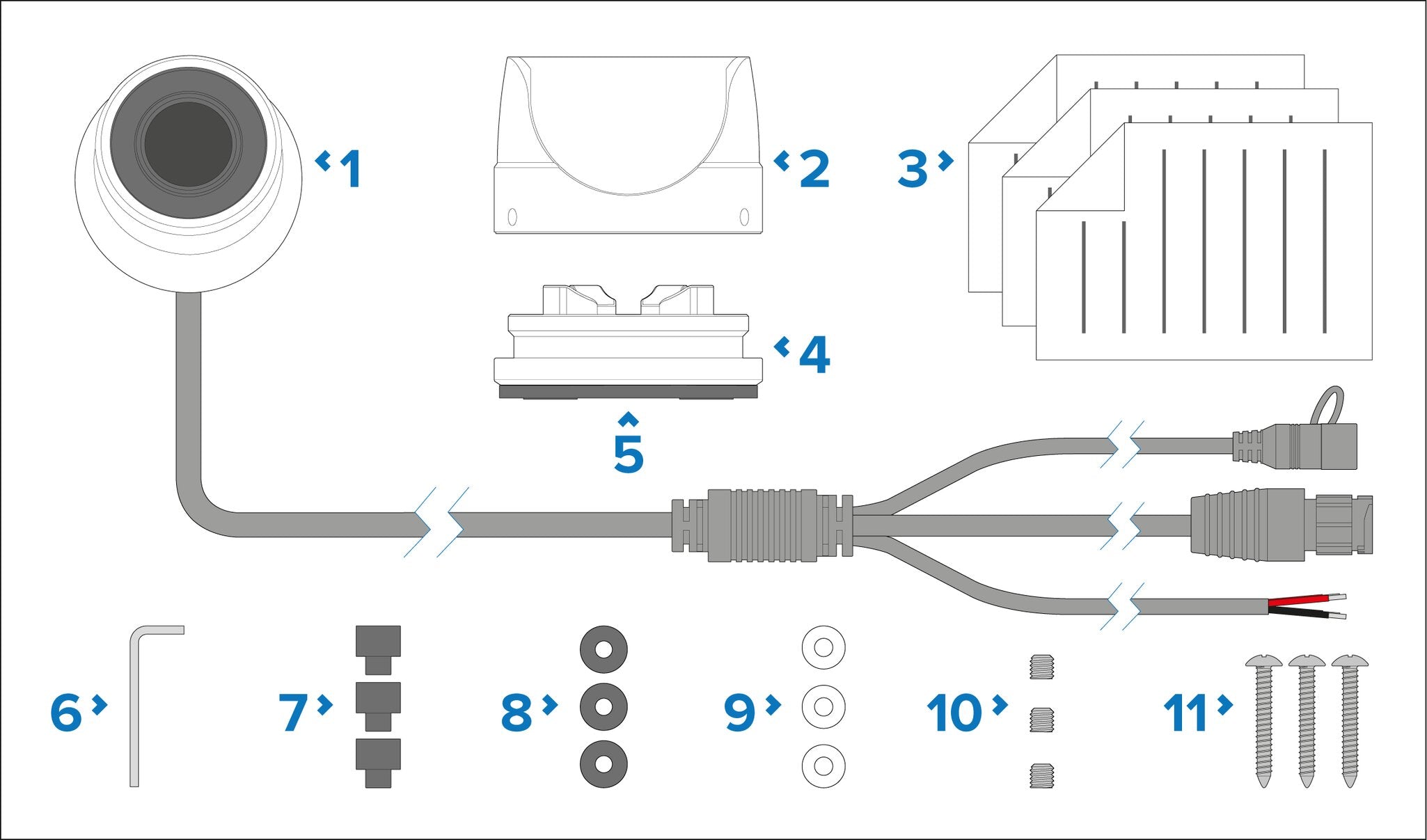

- CAM400 camera ball with fitted cable (RayNet male connector, factory reset switch and 12 V dc power wires)
- Camera collar
- Camera base
- Mounting gasket (pre-fitted to the camera base)
- 2 mm hex wrench
- 3 x rubber plugs
- 3 x silicone washers
- 3 x plastic washers
- 3 x grub screws
- 3 x M4 x 30 mm self-tapping mounting screws
- Documentation pack
No exploded diagram available for this product.
No compatible transducers listed for this product.
Raymarine AR200 ClearCruise Augmented Reality GPS and Heading Sensor
PoE Injector 12-24V DC 5Gb
Raymarine RNS8 - RayNet 8 Port Gigabit Network Switch with 4 POE Ports
RNS-5 Gigabit Raynet Network Switch
Raymarine RayNet Female to RJ45 Male Cable 1m
Raymarine RayNet Female to RJ45 Male Cable 3m
Raymarine RayNet Female to RJ45 Male Cable 10m
Image coming soonRaynet(F) To RJ45(M) Cable 15m
Raymarine RayNet Female to RayNet Female Cable 400mm
Raymarine RayNet Female to RayNet Female Cable 2m
Raymarine RayNet Female to RayNet Female Cable 5m
Raymarine RayNet Female to RayNet Female Cable 10m
Raymarine RayNet Female to RayNet Female Cable 20m
Image coming soonM300 Cable Raynet RA to STR 3M
Raymarine Right Angled Raynet to Raynet 10m Cable
Raymarine RayNet Male to RayNet Female Right Angle Adaptor
Raymarine RayNet Male to RayNet Male Adaptor Cable 100mm
Raymarine RayNet Cable Puller 5 pk
Raymarine Axiom 12 RV, 12 inch Multifunction Display
Raymarine Axiom 12, 12 inch Multifunction Display
Raymarine Axiom 2 12 Chartplotter
Raymarine Axiom 2 12 RV Chartplotter
Raymarine Axiom 2 7 Chartplotter
Raymarine Axiom 2 7 RV Chartplotter
Raymarine Axiom 2 9 Chartplotter
Raymarine Axiom 2 9 RV Chartplotter
Raymarine Axiom 2 Pro 12 RVM
Raymarine Axiom 2 Pro 12 S
Raymarine Axiom 2 Pro 16 RVM
Raymarine Axiom 2 Pro 16 S
Raymarine Axiom 2 Pro 9 RVM
Raymarine Axiom 2 Pro 9 S
Raymarine Axiom 2 XL 16 Chartplotter
Raymarine Axiom 2 XL 16 Chartplotter Kit
Raymarine Axiom 2 XL 19 Chartplotter
Raymarine Axiom 2 XL 19 Chartplotter Kit
Raymarine Axiom 2 XL 22 Chartplotter
Raymarine Axiom 2 XL 22 Chartplotter Kit
Raymarine Axiom 2 XL 24 Chartplotter
Raymarine Axiom 2 XL 24 Chartplotter Kit
Raymarine Axiom 7 DV, 7 inch Multifunction Display
Raymarine Axiom 7 RV, 7 inch Multifunction Display
Raymarine Axiom 7, 7 inch Multifunction Display
Raymarine Axiom 9 RV, 9 inch Multifunction Display
Raymarine Axiom 9, 9 inch Multifunction Display
Raymarine Axiom Pro 12 RVX Multifunction Display with RealVision 3D and 1kW CHIRP Sonar
Raymarine Axiom Pro 12 S Multifunction Display with CHIRP Sonar
Raymarine Axiom Pro 16 RVX Multifunction Display with RealVision 3D and 1kW CHIRP Sonar
Raymarine Axiom Pro 16 S Multifunction Display with CHIRP Sonar
Raymarine Axiom Pro 9 RVX Multifunction Display with RealVision 3D and 1kW CHIRP Sonar
Raymarine Axiom Pro 9 S Multifunction Display with CHIRP Sonar
Raymarine Axiom XL 16 Glass Bridge Multifunction Display
Raymarine Axiom XL 19 Glass Bridge Multifunction Display
Raymarine Axiom XL 22 Glass Bridge Multifunction Display
Raymarine Axiom XL 24 Glass Bridge Multifunction Display
Raymarine Axiom+ 12 RV, 12 inch Multifunction Display
Raymarine Axiom+ 12, 12 inch Multifunction Display
Raymarine Axiom+ 7 RV, 7 inch Multifunction Display
Raymarine Axiom+ 7, 7 inch Multifunction Display
Raymarine Axiom+ 9 RV, 9 inch Multifunction Display
Raymarine Axiom+ 9, 9 inch Multifunction Display
Camera
| Sensor | 1/2.8" CMOS, progressive scan |
| Total pixels | 1920 (H) x 1080 (V), 2.07 megapixels |
| Lens | 2.58 mm fixed wide-angle |
| Field of view | 129.4° horizontal / 69.9° vertical / 153.6° diagonal |
| Day / night | True day/night with mechanical IR cut filter |
| Illumination | 850 nm infrared, up to 10 m (32.8 ft) range |
| Image mirroring | Horizontal and vertical flip, for ball-up or ball-down mounting |
Video
| Compression | H.264 / MJPEG |
| Maximum resolution | 1920 x 1080 |
| Streams | Triple stream: Stream 1 H.264/MJPEG, Stream 2 H.264/MJPEG, Stream 3 MJPEG |
| Frame rate | Up to 30 fps (adjustable 1-30 fps) |
| Bit rate | VBR 256 Kbit/s to 12.3 Mbit/s; CBR 32 Kbit/s to 12.3 Mbit/s |
| ONVIF | Profile S |
Compatibility
| Raymarine displays | Axiom 2 Pro, Axiom 2 XL, Axiom 2, Axiom, Axiom+, Axiom Pro and Axiom XL running LightHouse v4.11.133 or later |
| Distance guidelines | Axiom 2-series chartplotters running LightHouse 5 v5.0.126 or later |
| ClearCruise AR | Requires an AR200 sensor (E70537) and a compatible Axiom display |
| Older displays | Previous-generation Raymarine displays are not supported |
| Multiple cameras | Up to 4 CAM400 streams on one display; one camera viewable on up to 10 displays |
Power
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 10.8 V dc to 15.6 V dc |
| Power consumption | 2.1 W nominal @ 12 V dc / 5 W maximum (LEDs on) |
| Current | < 420 mA maximum @ 12 V dc |
| Power over Ethernet | IEEE 802.3af (Type 1) Class 2, 6.49 W max |
| Inline fuse / thermal breaker | 2 A / 3 A |
Connectivity
| Network connection | Fitted cable with RayNet (male) connector, factory reset switch and 12 V dc power wires |
Physical
| Finish | Gloss marine white |
| Height | 80.80 mm (3.18 in) including base |
| Width | 64.50 mm (2.54 in) |
| Depth | 70.48 mm (2.77 in) including lens |
| Weight | 420 g (0.926 lb) |
| Mounting | Ball-up or ball-down, surface mount with 3 x M4 screws, 25 mm cable hole |
Environmental
| Waterproof rating | IPx6 and IPx7 |
| Operating temperature | -20 °C to +60 °C (-4 °F to 140 °F) |
| Storage temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Relative humidity | Up to 95% @ 60 °C (140 °F) |
Conformance
| Standards | EN 60945:2002 (exposed), EN IEC 60529 IPx6 & IPx7, EMC Directive 2014/30/EU, UK EMC Regulations 2016, RoHS 2011/65/EU |
| Product markings | UKCA, CE, RCM, WEEE |
